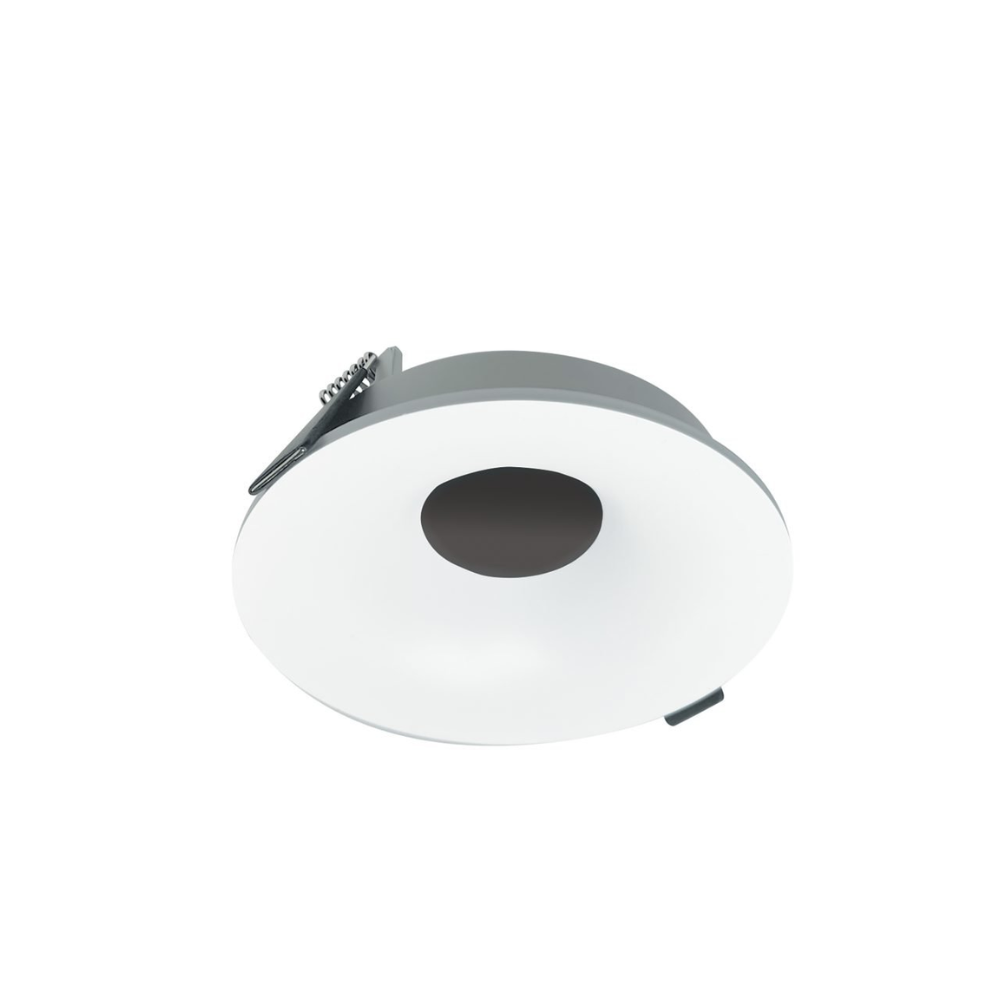

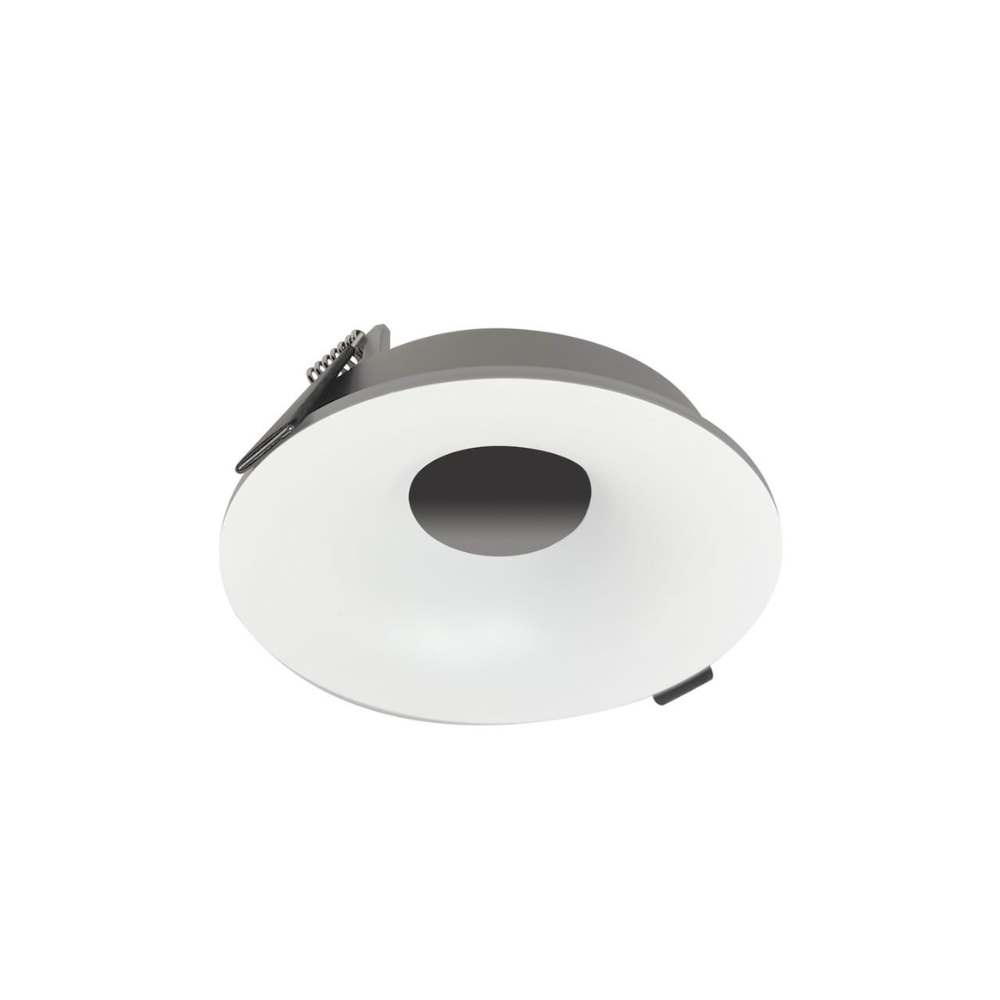

NIOC-4RNB 4" Iolite Can-less Round Bullnose Trim

4″ Bullnose trim with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles. Iolite can-less trims require a compatible LED module and driver box. 4" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors
optimize visual cut-off.

Product Information

• No housing required - IC Air-Tight rated
• Easy installation for remodel or new construction applications
• Variety of trim accessories to configure desired appearance
• Quick disconnect allows for extended lengths
• Dedicated CCT or Comfort Dim (warm dim)
• Flood optic, narrow flood and spot optics (included)
• 5-Year limited warranty
• cULus Listed for Wet Locations

Specification

• Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
• Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
• Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
• Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
• Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.

Optics: Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).

Materials: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.

Dimensions: 4.53 W x 4.08 H inches

Light Source:

• Input Voltage: 120VAC
• Lumens / Wattage: 1250lm / 12W
• Color Temperature: 2700K, 3000K, 3500K or 4000K
• Color Rendering Index: 90+CRI
• Operating Temperature: 0°-30°C
• Lifetime: 50,000 hours @ L70
• Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only.
• Dimming: Triac or ELVInput Voltage: 120V

Compatible with:

• 2NIOC-24LED " & 4" Iolite Can-less LED Module
• NJCB-12 12W Driver Box for 2" & 4" Iolite Can-less
