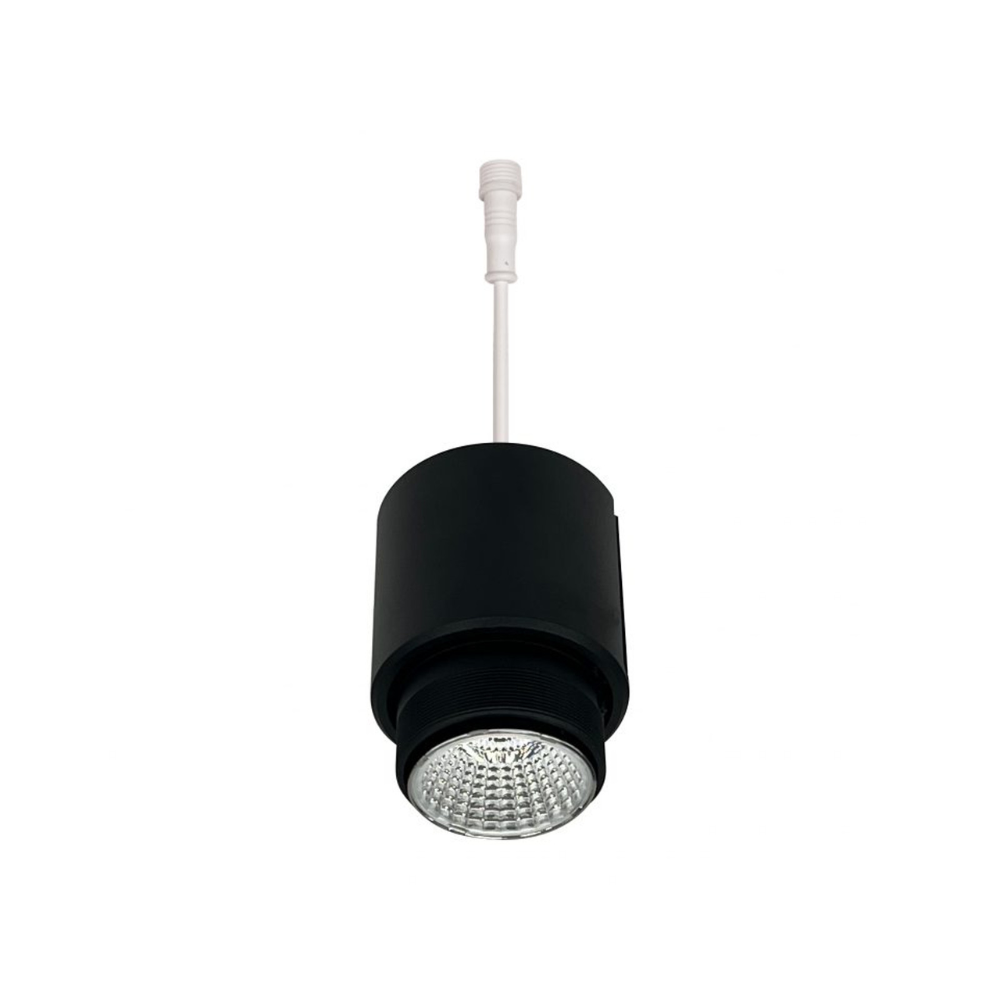

Nora Lighting NIOC-24LED LED module
Nora Lighting NIOC-24LED LED module optics

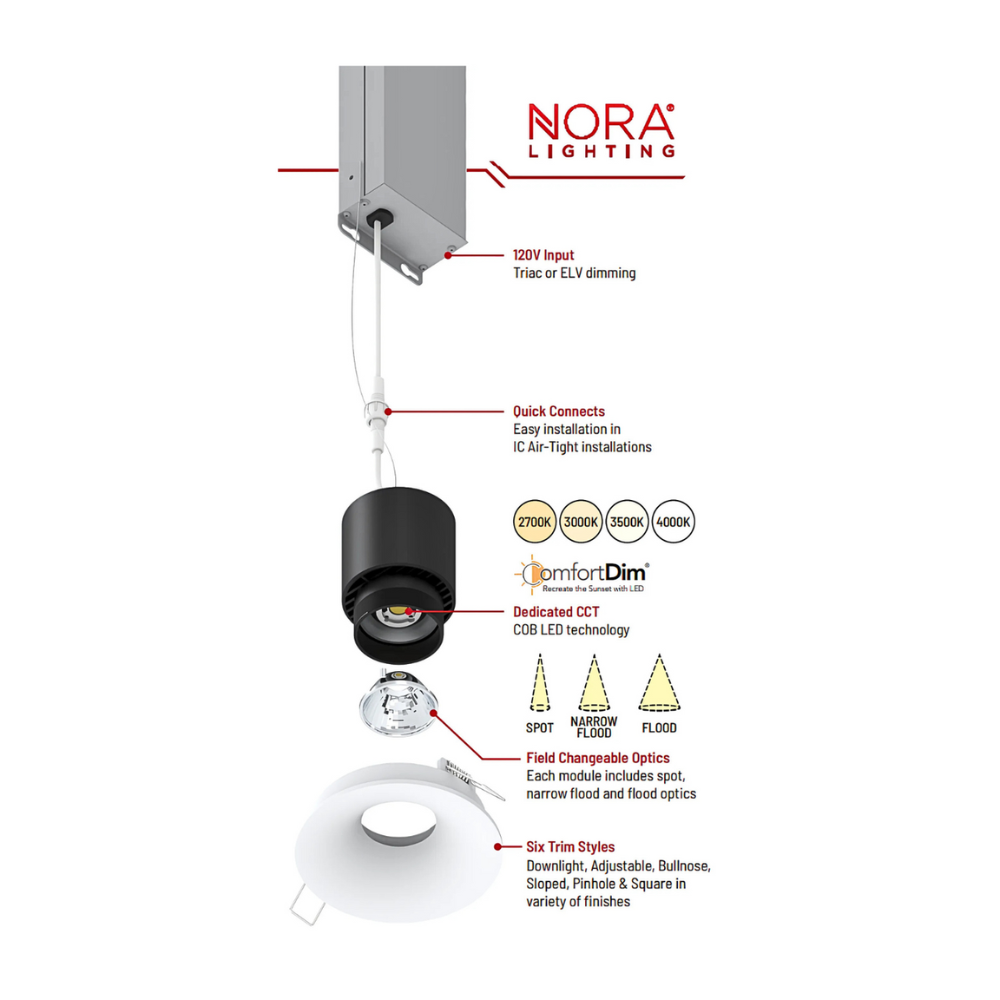

Nora Lighting NIOC-24LED LED module components diagram
Nora Lighting NIOC-24LED LED module dimensions

NIOC-24LED 1250lm LED Module for 2" & 4" Iolite Can-less

By Nora Lighting
$30.51
Light temperature

IC rated aluminum die-cast LED module with two tension steel spring clips. Module includes a 6″ quick connect wire and threaded to fit the trim and transfer heat. Iolite can-less LED modules require a compatible driver box and trim. IC rated aluminum die-cast LED module with two tension steel spring clips. Used in conjunction with 12W driver box, 2" or 4" Iolite Can-less trims.

Product Information

  • No housing required - IC Air-Tight rated
  • Easy installation for remodel or new construction applications
  • Compatible with 2" or 4" Iolite Can-less trims and 12W driver box
  • Quick disconnect allows for extended lengths with accessories
  • IC rated
  • Dedicated CCT or Comfort Dim (warm dim)
  • Flood optic, narrow flood and spot optics (included)
  • cULus Listed for Wet Locations (when used with compatible driver/trim)

Specification

  • Construction: Die-cast aluminum LED module includes 6" quick connect wire to the driver box for ease of installation. LED module is threaded to fit the trim and transfer heat.
  • Clearance: IC rated LED modules can be installed with direct contact against insulation (not spray foam insulation), no minimum clearance is required.
  • Installation: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in accessories are also available. (Refer to trim for compatibility)

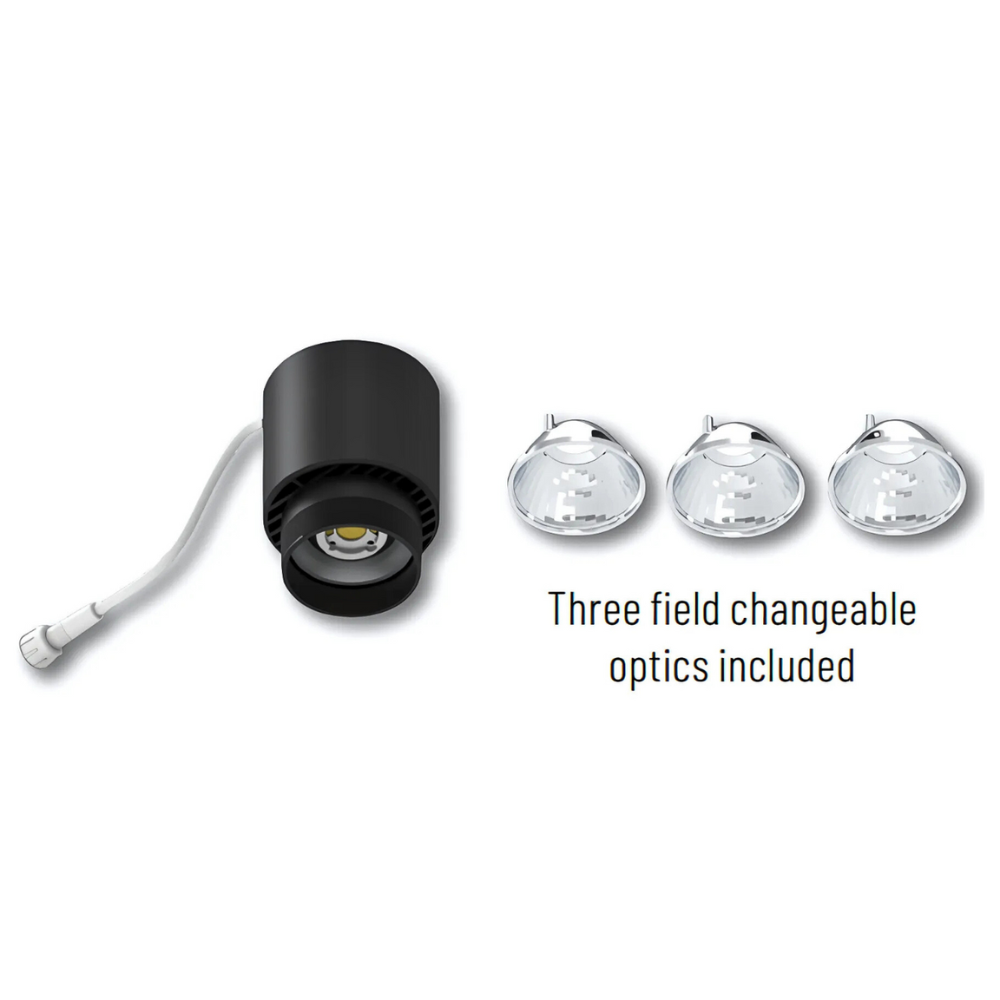

Optics: Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).

Light Source:

  • Input Voltage: 36VDC
  • Lumens / Wattage: 1250lm / 12W Color Temperature: 2700K, 3000K, 3500K, 4000K or Comfort Dim
  • Color Rendering Index: 90+CRI
  • Operating Temperature: 0°-30°C
  • Lifetime: 50,000 hours @ L70
  • Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 875lm only

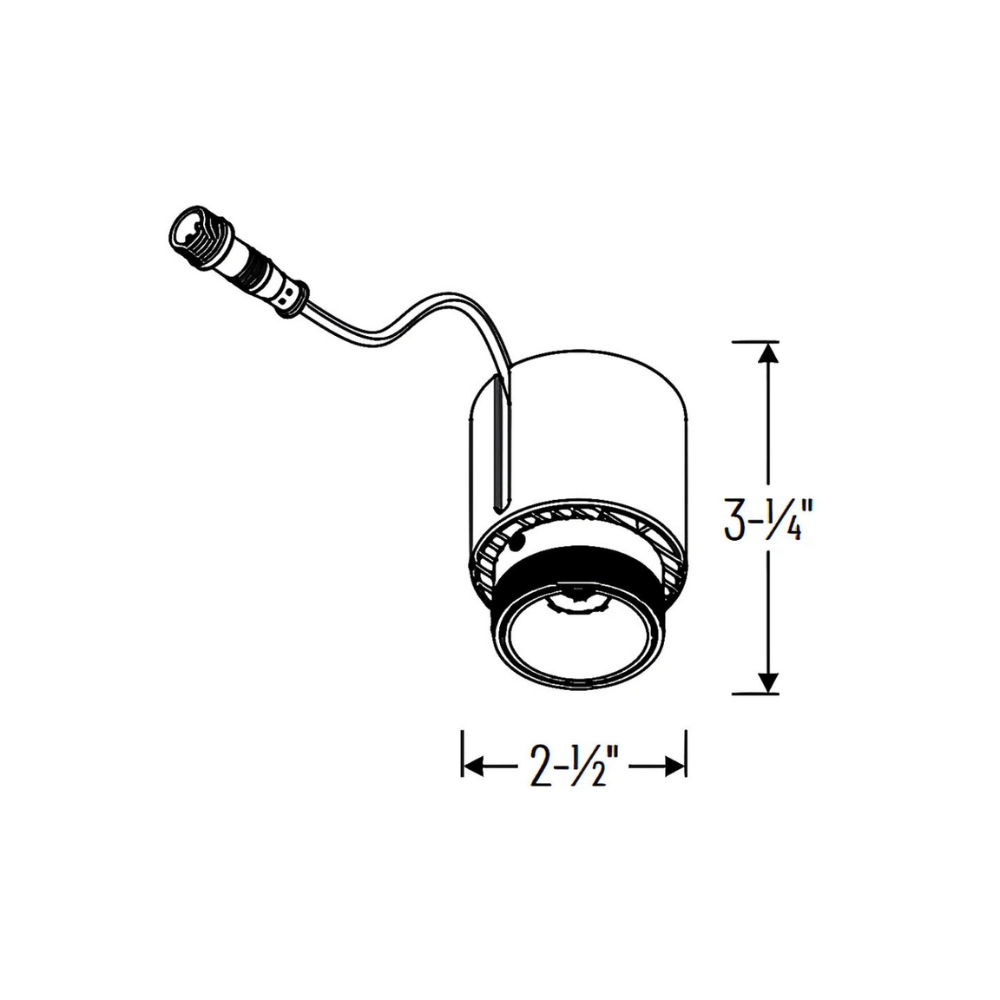

Dimensions: 3 1/4 H x 2 1/2 Dia. inches

Compatible with:

Downloads:

SKU: NOR-NIOC-24LED927X
