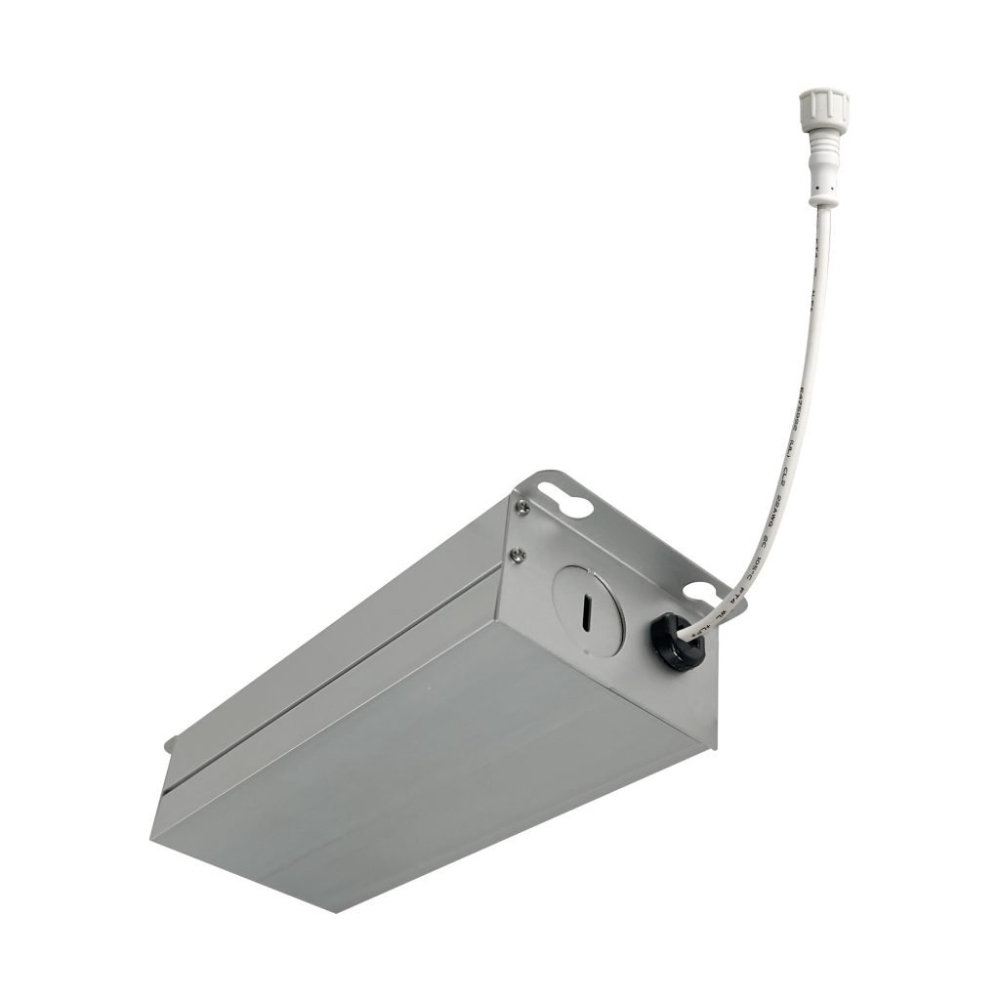

NJCB-12 12W Driver Box for 2" & 4" Iolite Can-less

IC rated driver box with dimmable driver and includes a 7″ quick connect wire for easy installation. Iolite can-less driver boxes require a compatible LED module and trim. IC rated driver box with dimmable driver. Used in conjunction with 2" and 4" Iolite Can-less LED modules

Product Information

• No housing required - IC Air-Tight rated

• Easy installation for remodel or new construction applications
• Compatible with 2" and 4" Iolite Can-less downlights

• Quick disconnect allows for extended lengths with accessories

• IC rated

• 120VAC input

• Triac or ELV dimming

• JA8-2022, cULus and ENERGY STAR qualified

• cULus Listed for Wet Locations (when used with compatible module/trim)

Specification

Construction: Prewired junction box includes 7" quick connect wire to the LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.

• Clearance: IC rated driver boxes can be installed with direct contact against insulation (not spray foam insulation), no minimum clearance is required.
• Installation: Can be used in remodel applications without any additional frame. Can be used in new construction applications with universal new constrution frame-in (NF-R124).

Light Source:

• Input Voltage: 120VAC
• Wattage: 12W
• Operating Temperature: 0°-30°C
• Dimming: Triac or ELV

Dimensions: 1.38 H x 2.65 W x 7 L inches

Compatible with:

• NIOC-24LED 1250lm LED Module for 2" & 4" Iolite Can-less

Downloads:

• Spec Sheet
• Installation Instructions
