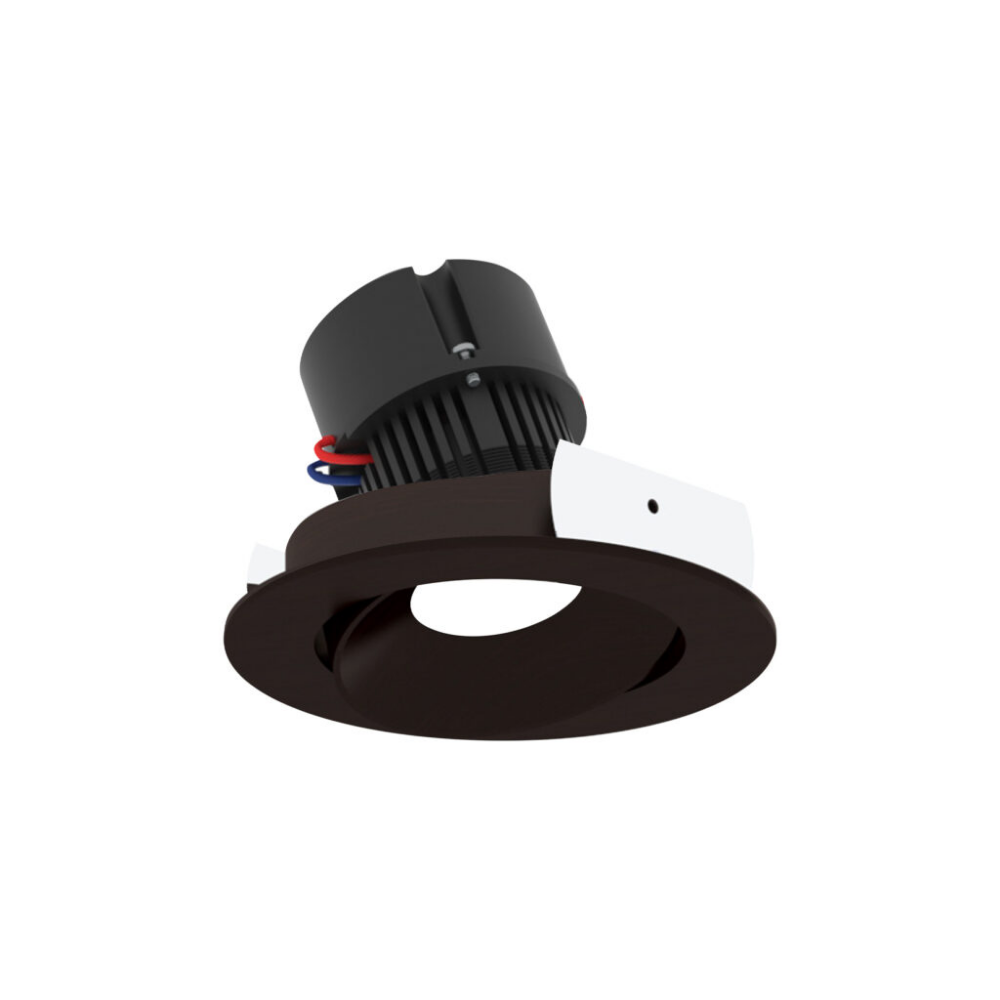

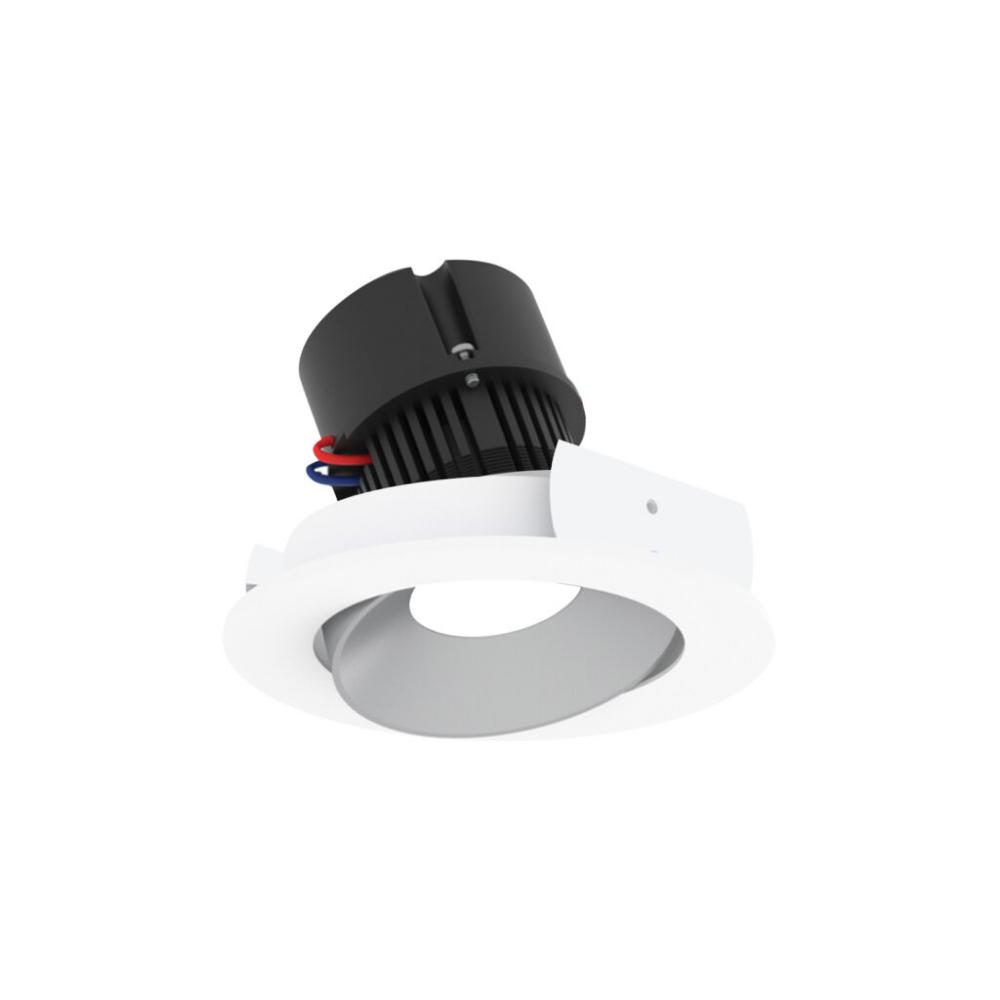

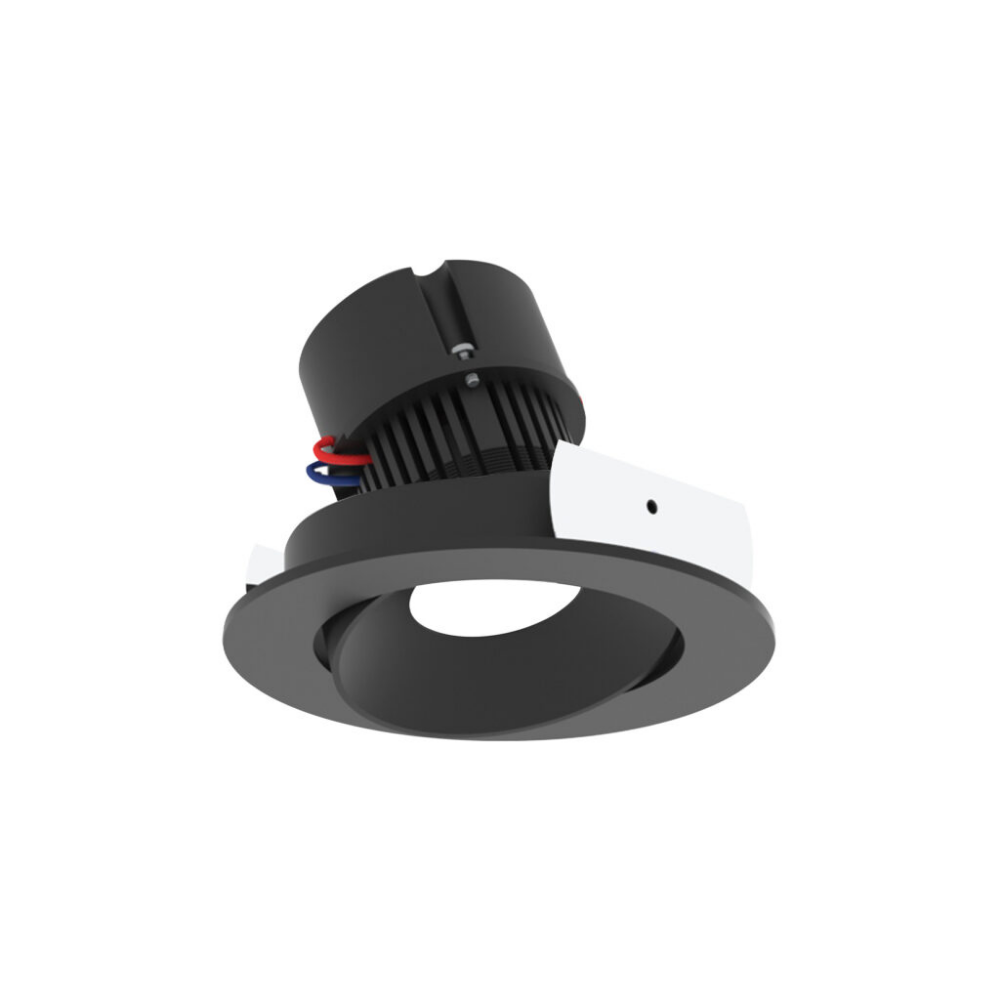

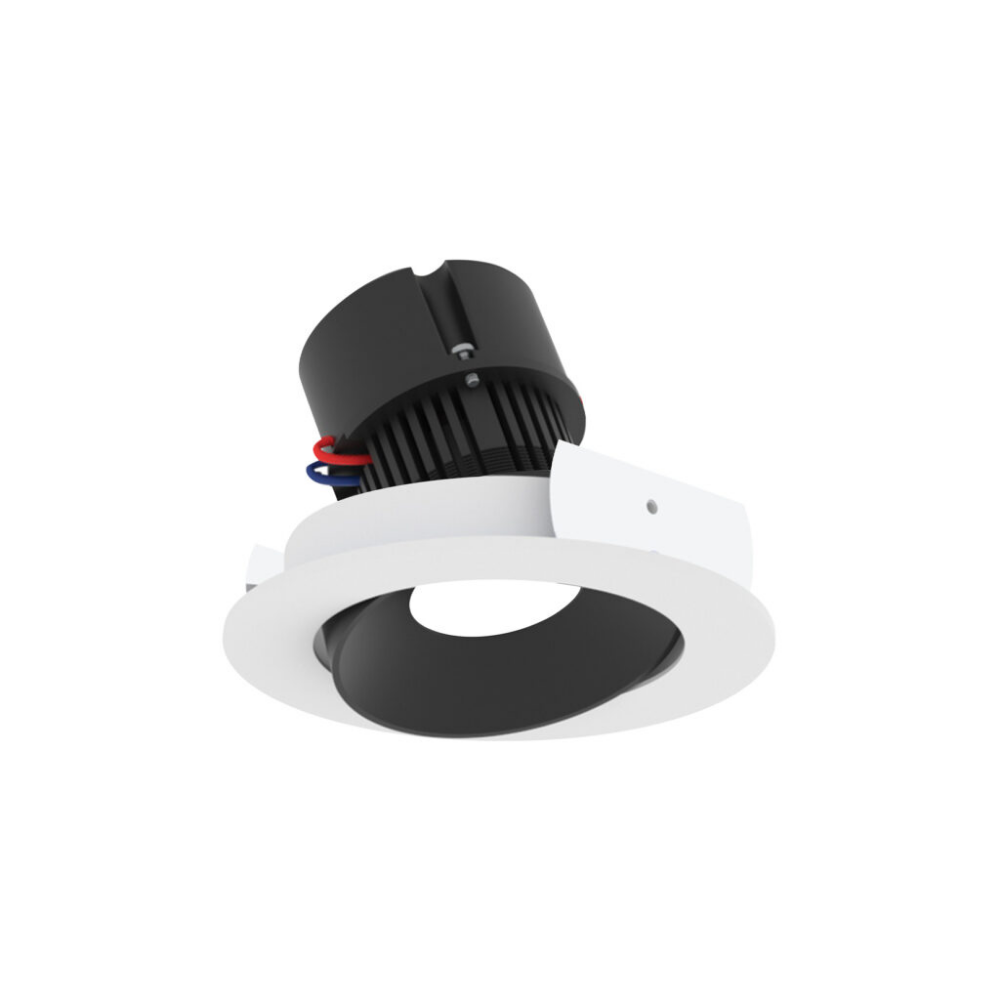

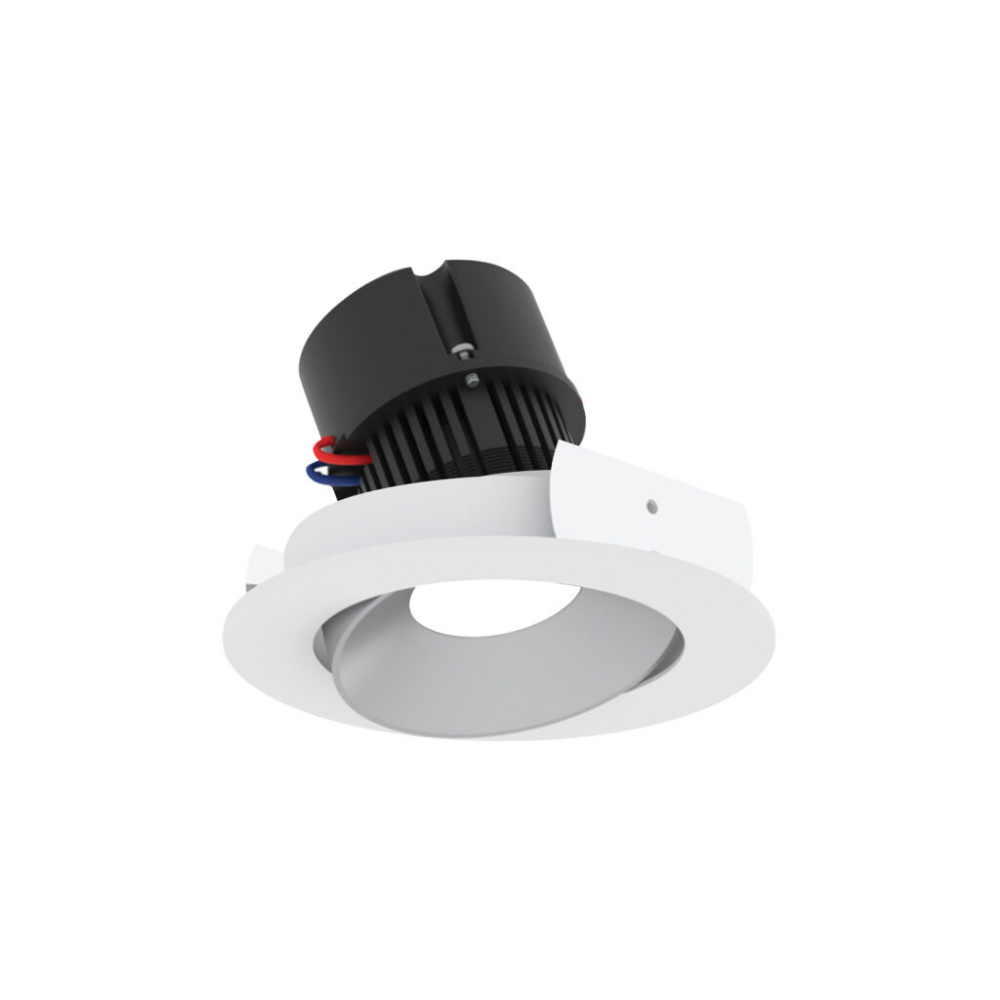

4" Pearl 120V LED Round Adjustable Cone Retrofit NPR-4RC

4″ Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4″ retrofit luminaires deliver over 1250 lumens with die-cast adjustable cone for optimal visual cut-off and adjustability to aim the light source in desired direction.

Input Voltage: 120V (Also available in 12V input)

Socket: Medium base socket adapter included

Color Temperatures: 2700K, 3000K, 3500K, 4000K, Comfort Dim (warm dimming)

Lumens / Wattage: 1250lm (750lm with Comfort Dim) / 10W

Optics Included: Spot, Narrow Flood, Flood (field changeable)

Compatible Housing:

• NFBIC-4LMRATA = Fire Rated LED Housing
• NFBIC-427LMRATA = Shallow Fire Rated LED Housing
• NFBIC-4INCATA = Fire Rated Line Voltage Housing
• NFJB-R4 = Fire-Rated Junction Box Housing
• NSIC-4LMRAT = Max. Adjustability LED Dedicated ICAT Housing
• NHIC-4LMRAT = IC Air-Tight LED Housing
• NHIC-427LMRAT = Shallow IC Air-Tight LED Housing
• NSIC-401QAT = IC Air-Tight Line Voltage Housing
• NS-401QAT = Non-IC Air-Tight Line Voltage Housing
• NHIC-4G24AT = IC Air-Tight GU24 Housing
• NHRIC-4LMRAT = IC Air-Tight LED Remodel Housing
• NHRIC-427LMRAT = Shallow IC Air-Tight LED Remodel Housing
• NSRIC-404QAT = IC Air-Tight Line Voltage Housing
• NSR-404QAT = Non-IC Air-Tight Line Voltage Housing

Optional Remote Emergency:
NEPK-23LEDUNV: 23W Emergency LED Driver with Remote Test Switch

Downloads

• Spec Sheet
• Installation Instructions
