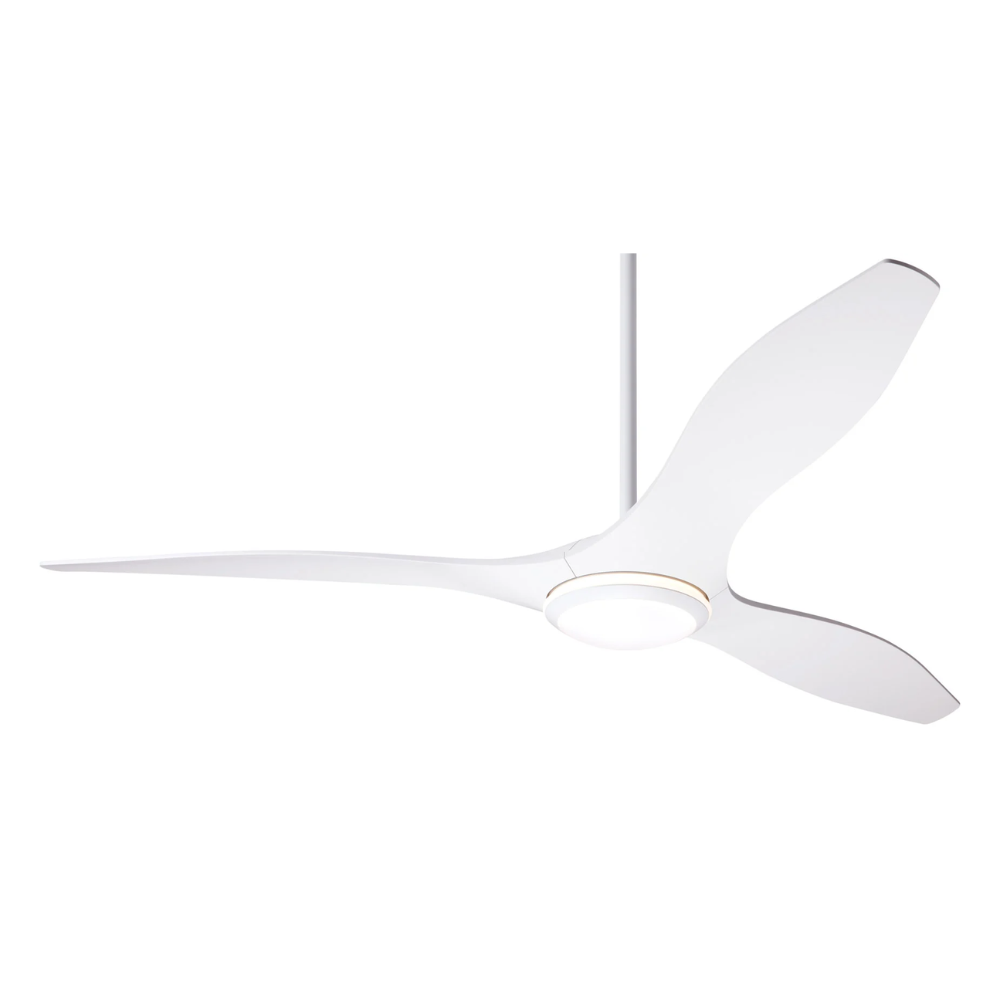

The matte white IC/Brisa DC LED - 56″ from Modern Fan Co.

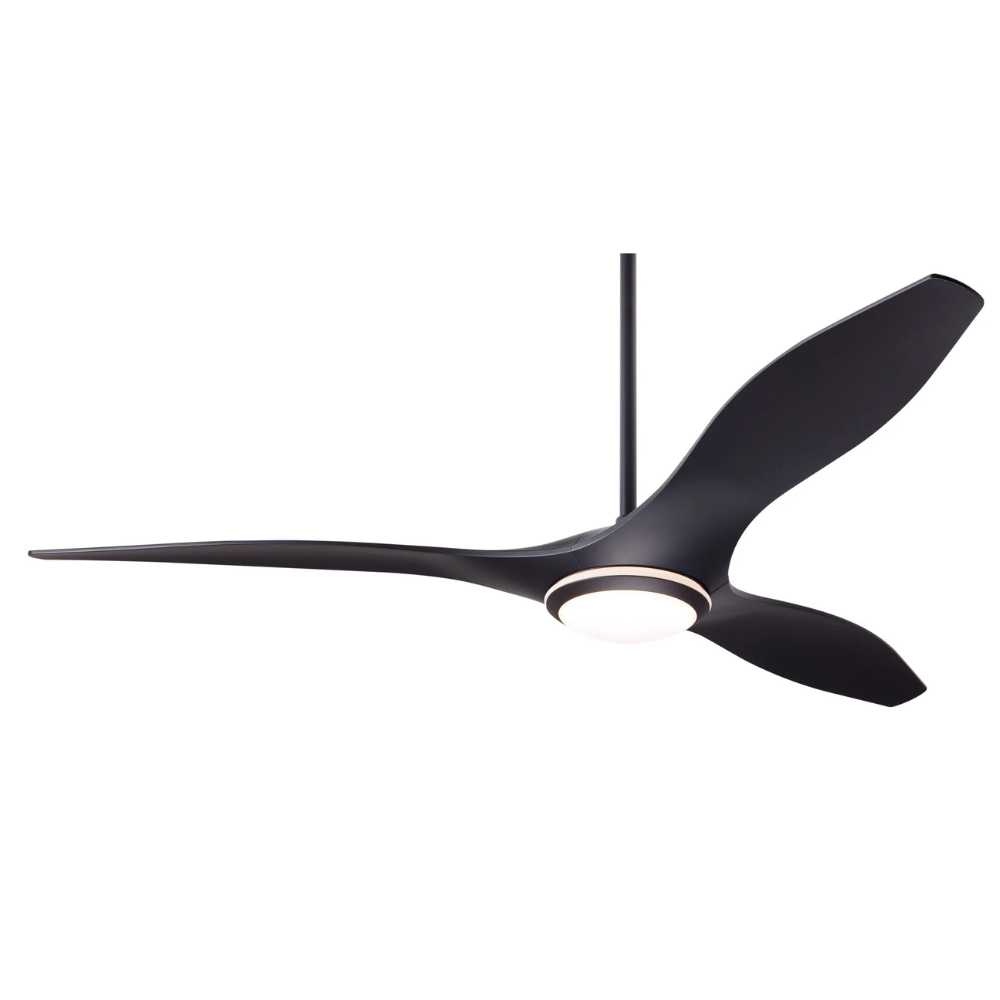

The matte black IC/Brisa DC LED - 56″ from Modern Fan Co.

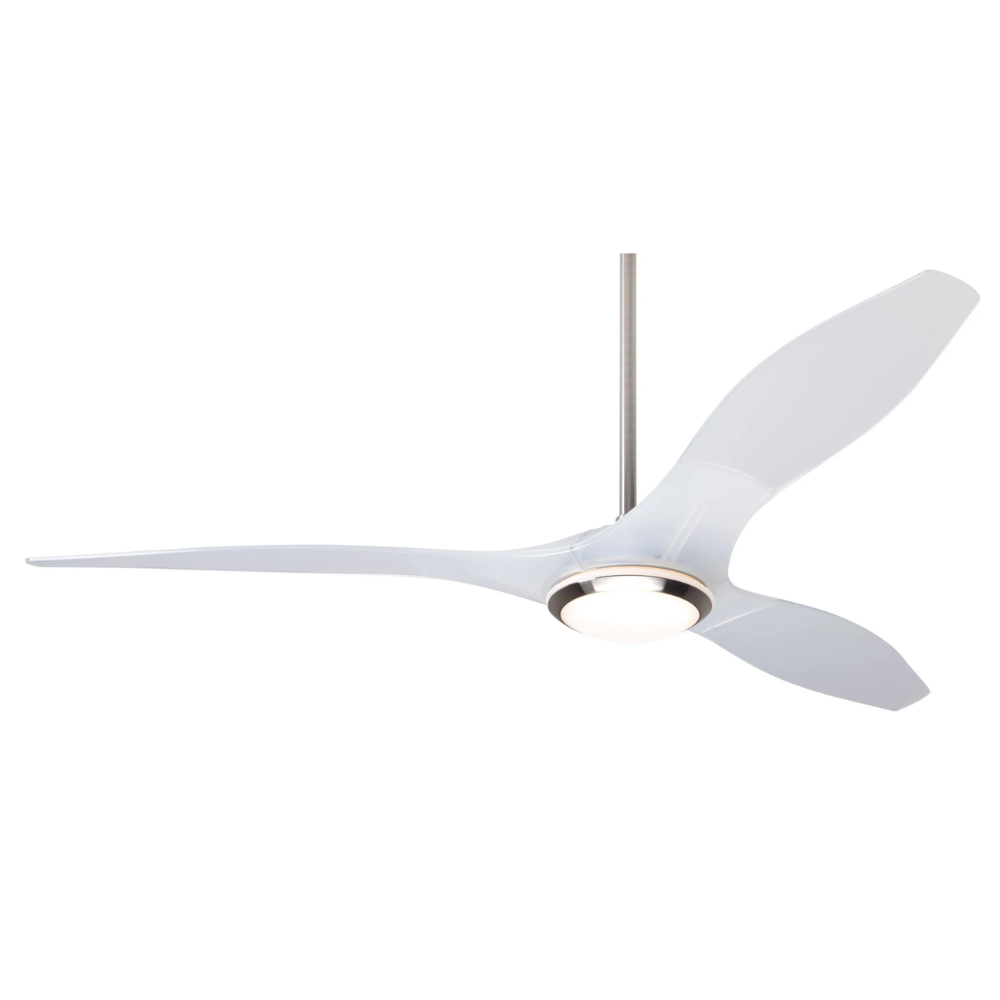

The bright nickel and translucent IC/Brisa DC LED - 56″ from Modern Fan Co.
The satin brass and matte white IC/Brisa DC LED - 56″ from Modern Fan Co.

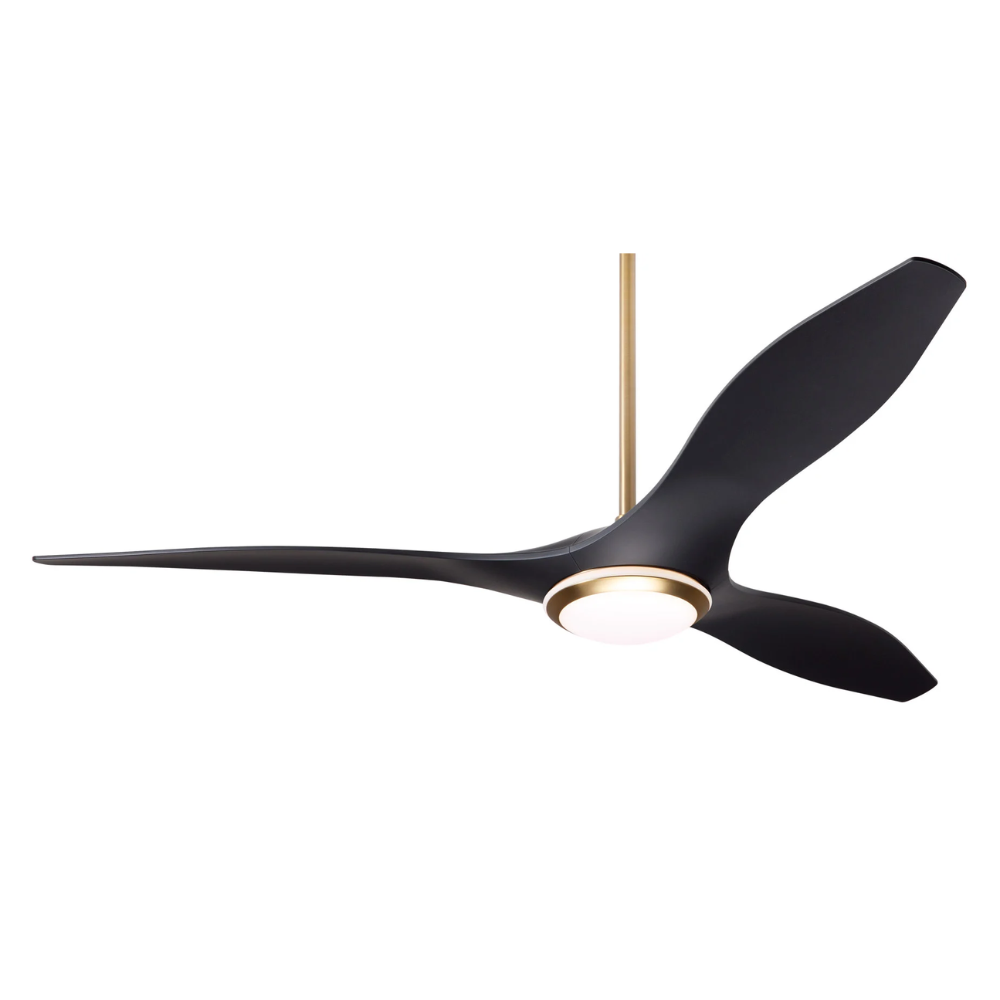

The satin brass and matte black IC/Brisa DC LED - 56″ from Modern Fan Co.

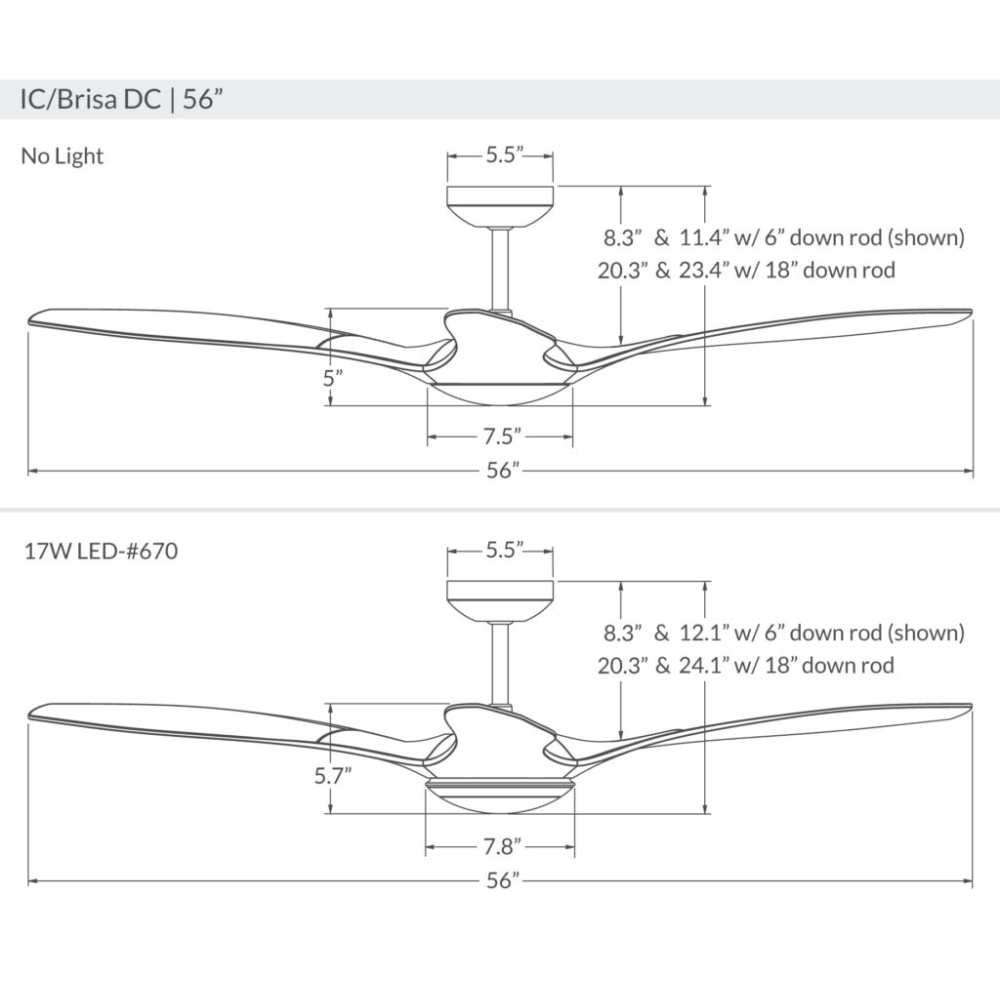

The IC/Brisa DC LED - 56″ from Modern Fan Co. dimensions. all-groups

IC/Brisa DC LED - 56″

By Modern Fan Co.
$680.00
Color: Matte White
Controller Option

The IC/Brisa DC LED ceiling fan from The Modern Fan Co. with a 56" span.

Details:

  • 6-speed, reversible DC motor
  • 56” span, injection-molded ABS blades (matte white, matte black or translucent)
  • Includes 6” and 18” down rods; other options are also available
  • Slope compatible up to 20°; adapter available for slopes up to 45°
  • Designed by Guto Indio da Costa
  • ETL listed for dry and damp locations

High-Speed Performance Data:

Based on the DOE standardized test method (installed with an 8″ down rod).

  • RPM: 185
  • CFM (Cubic Feet per Minute): 5,584
  • Watts (fan only): 29.89
  • CFM/Watt:

Controller Options:

  • Wall Control: For radio frequency operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), decora-style wall plate (which comes in white only), battery, and RF canopy receiver.
  • Remote Control: For remote operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. It includes a handset, wall mount holder, batteries, and an RF canopy receiver. This option is for use with an on/off toggle switch providing power supply to the fan.
  • Wall/Remote Combo: A combination control set for remote operation of a fan or fan and light. It uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), a Decora-style wall plate (which comes in white only), a handset, batteries, and an RF canopy receiver.

Materials: Die-cast aluminum and injection-molded ABS construction

Dimensions (w/ 6" down rod):

  • 12.1 H x 56 Dia. inches
  • Base Dia. 5.5 inches
  • Weight: 12.0 lbs (5.44 kgs)

Light Source:

  • 17W LED
  • 1530 lumens (dimmable) behind an opal glass diffuser
  • Color Temperature: 3000K
  • CRI: 90
  • CA Title 24 (JA8) compliant

Downloads:

Looking for this fan without an LED option? Check out the IC/Brisa DC - 56".

SKU: MFC-BRI-MW-56-670-WC
