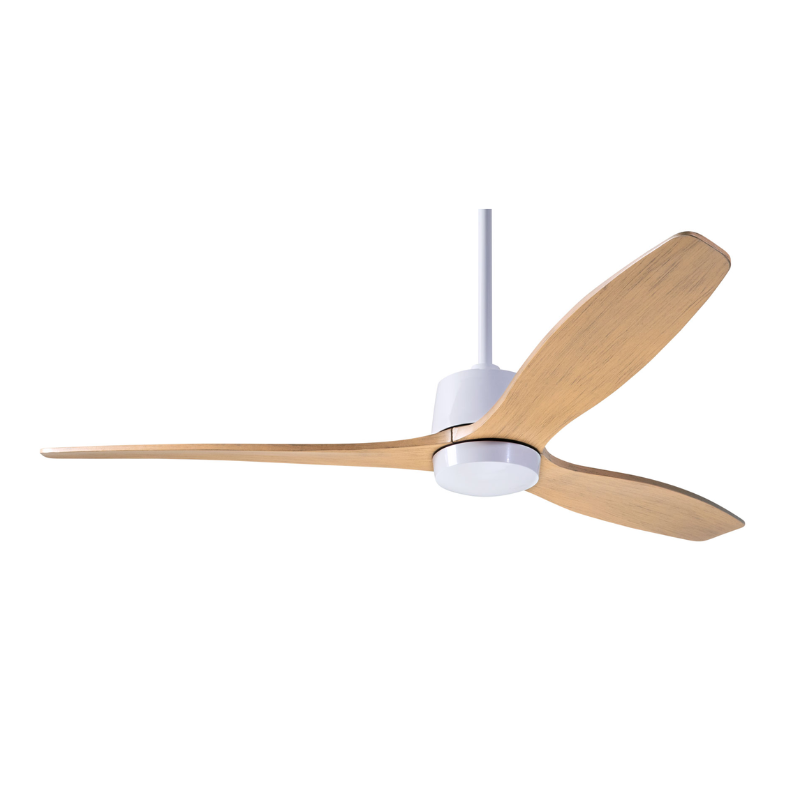

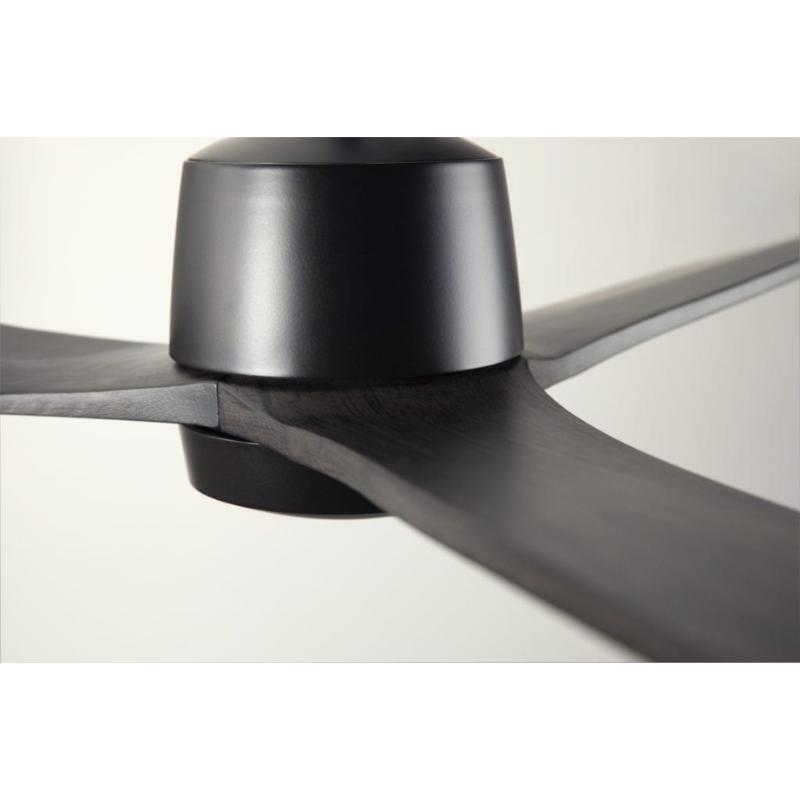

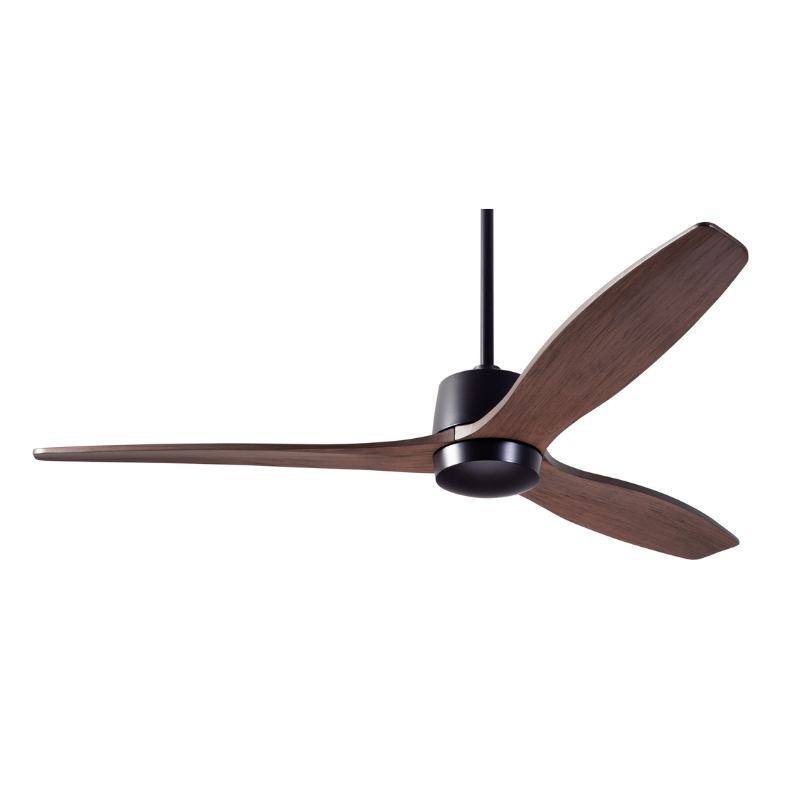

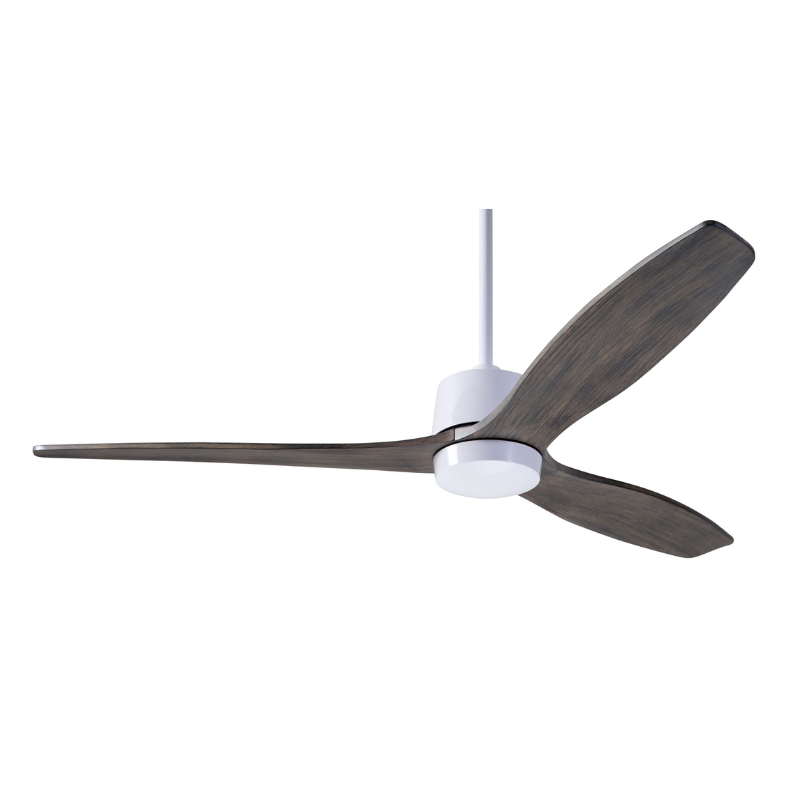

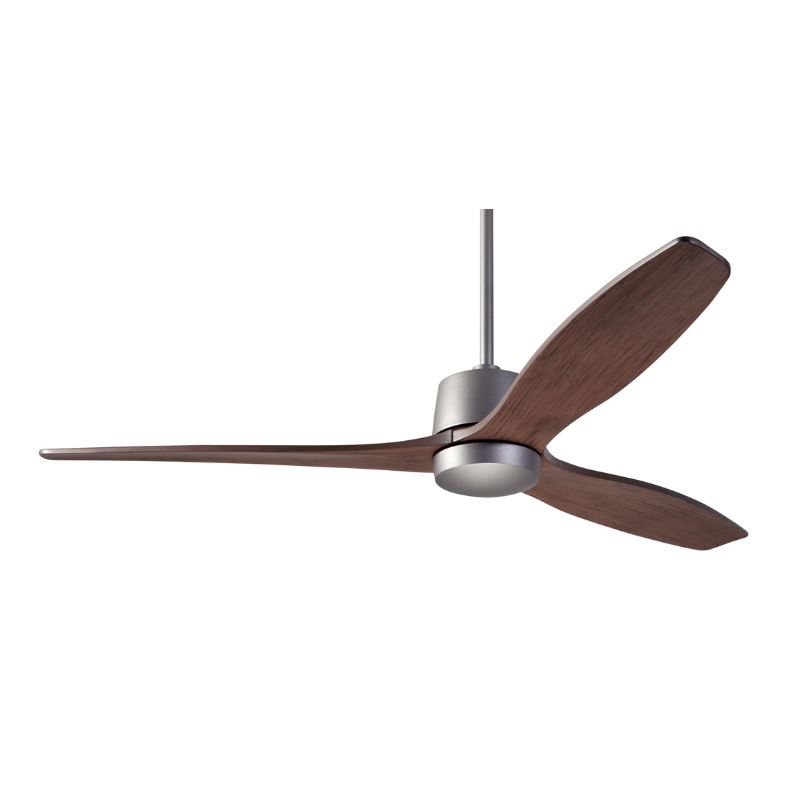

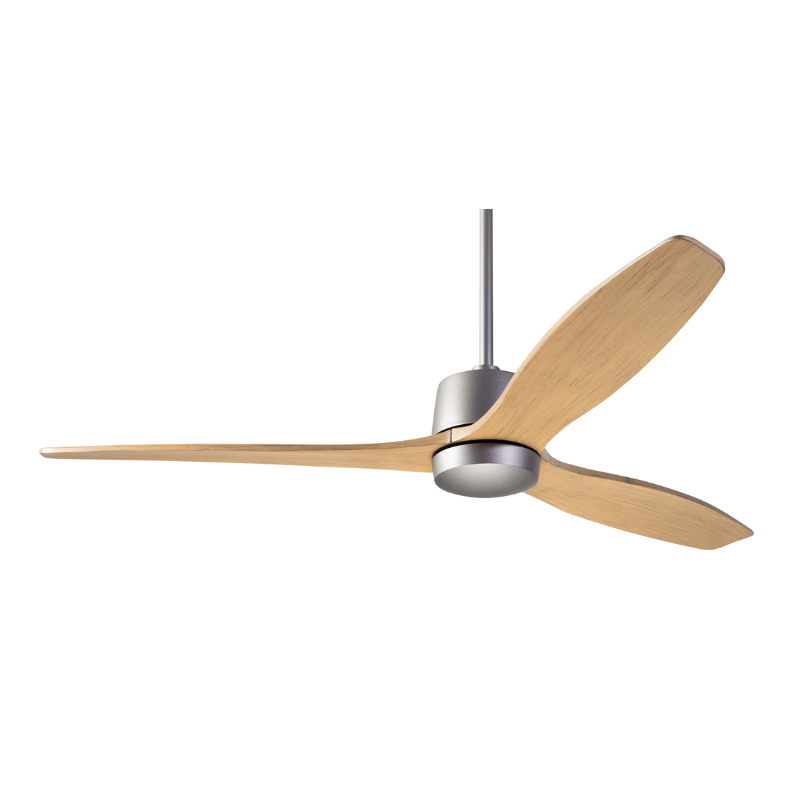

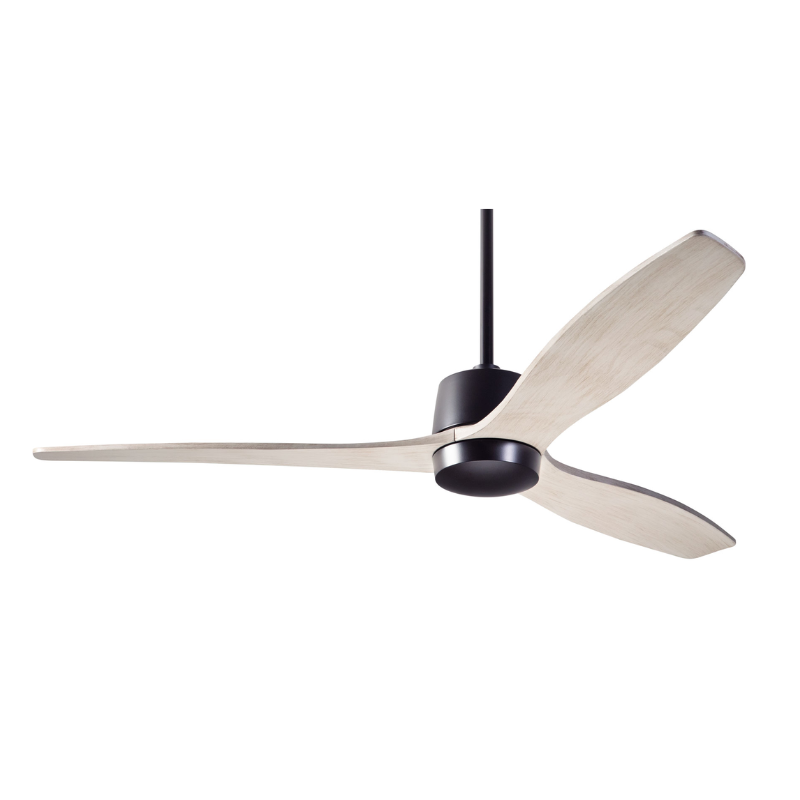

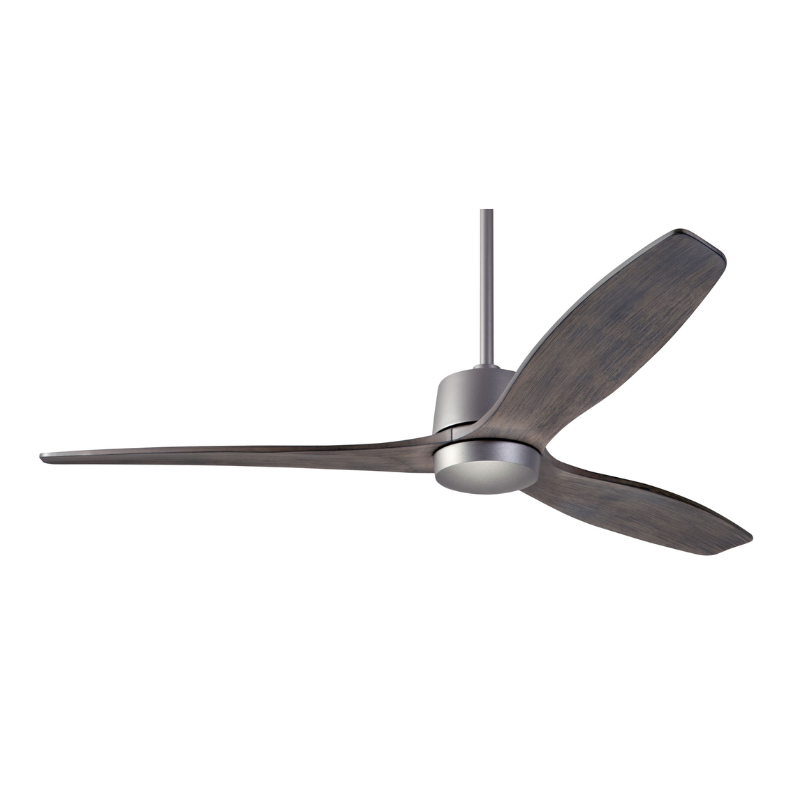

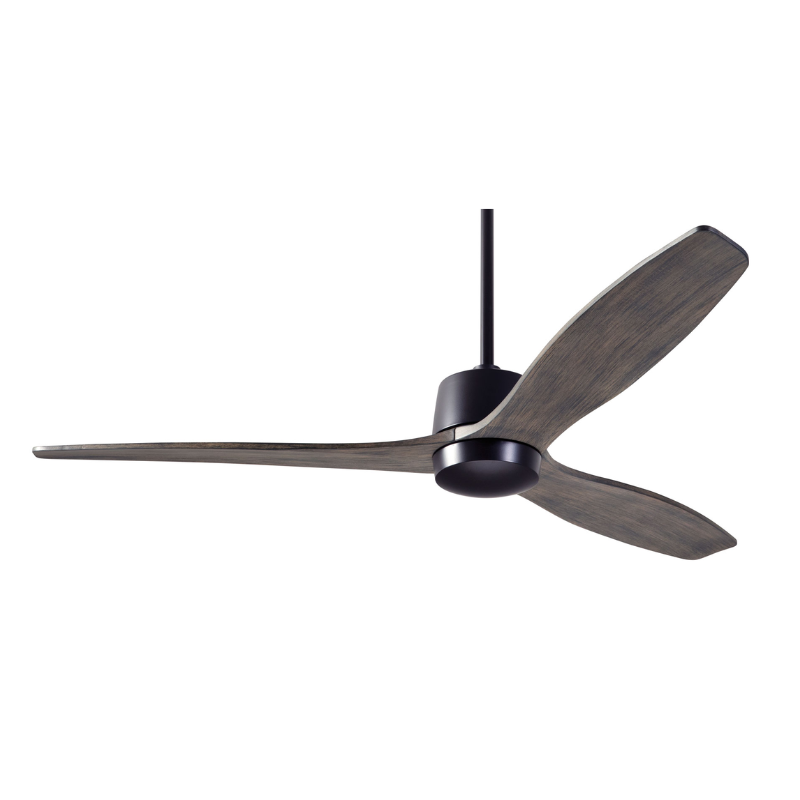

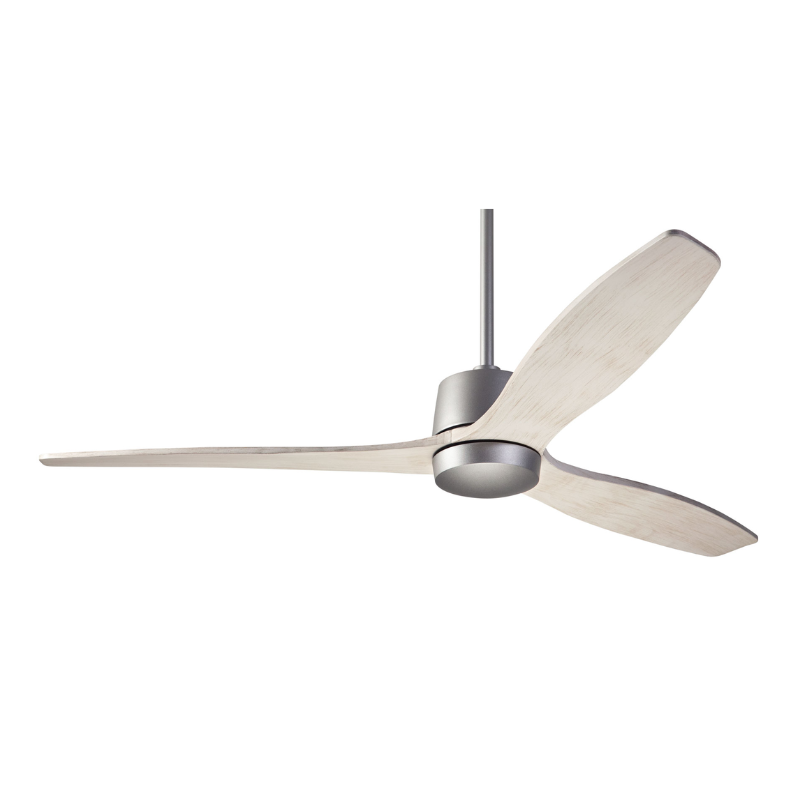

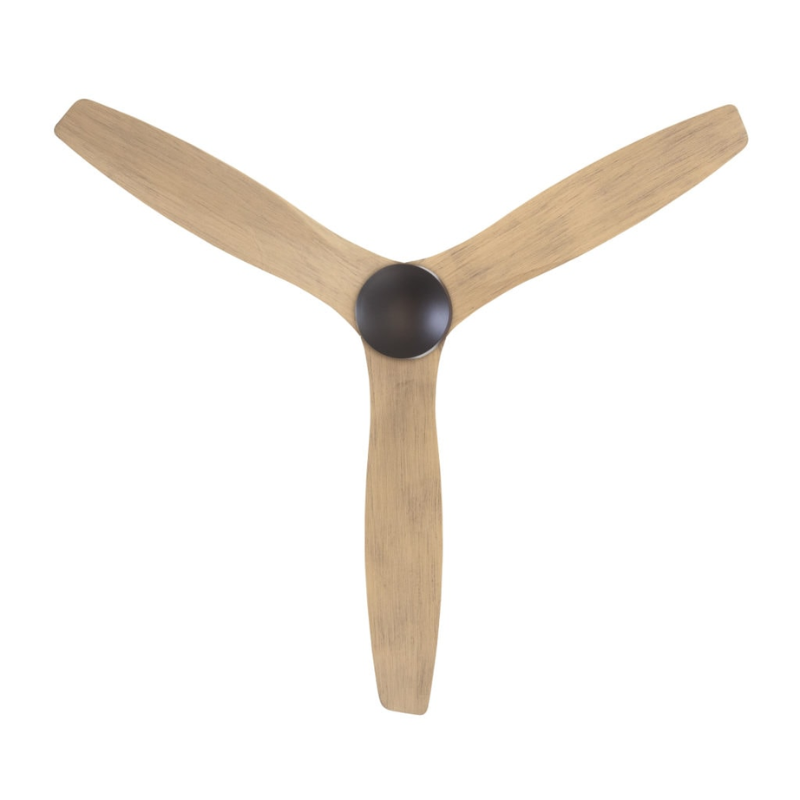

Arbor DC - 54"

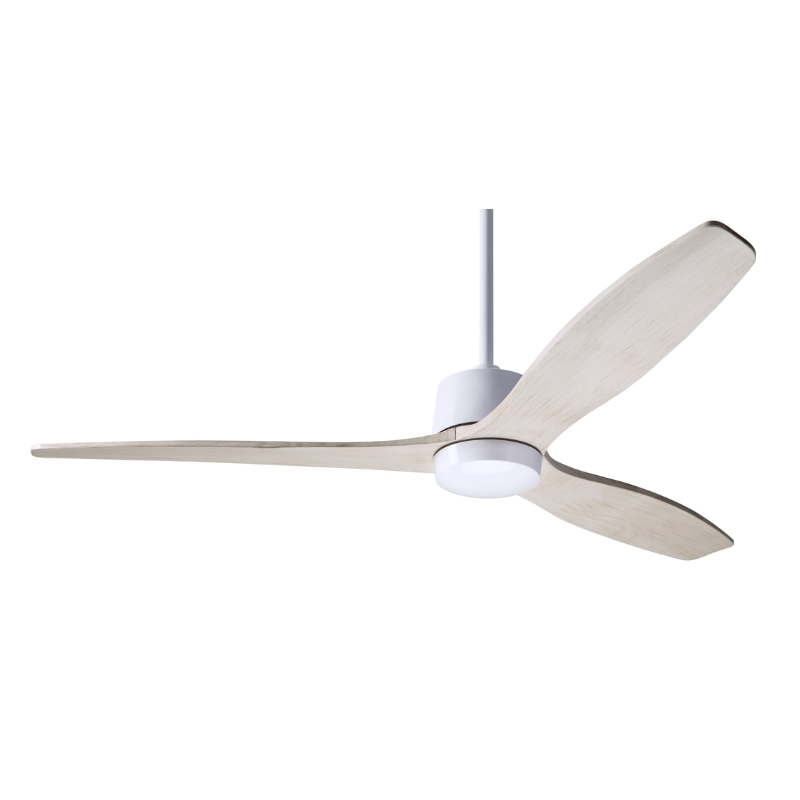

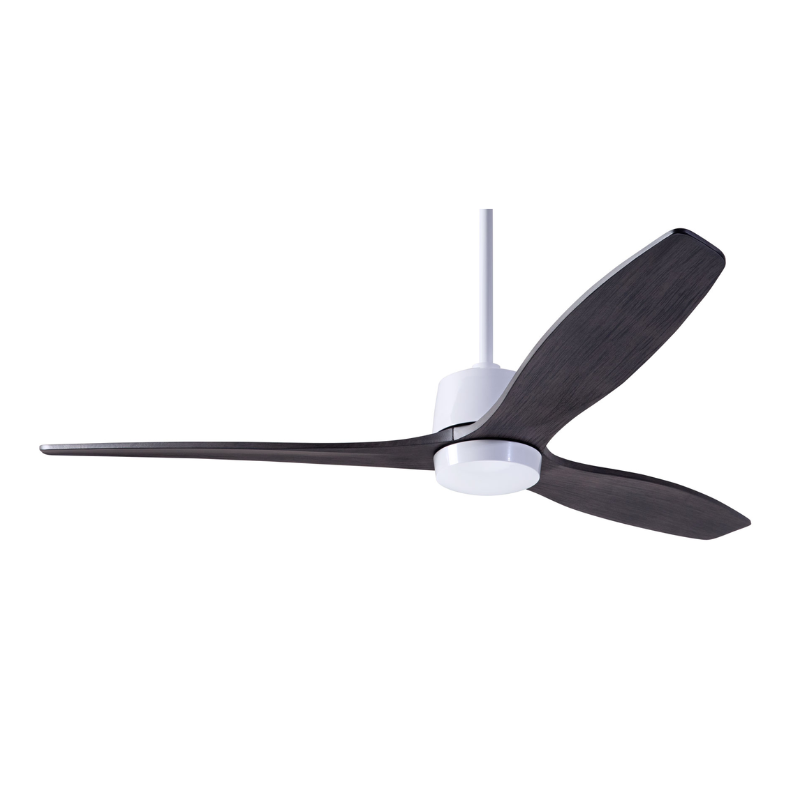

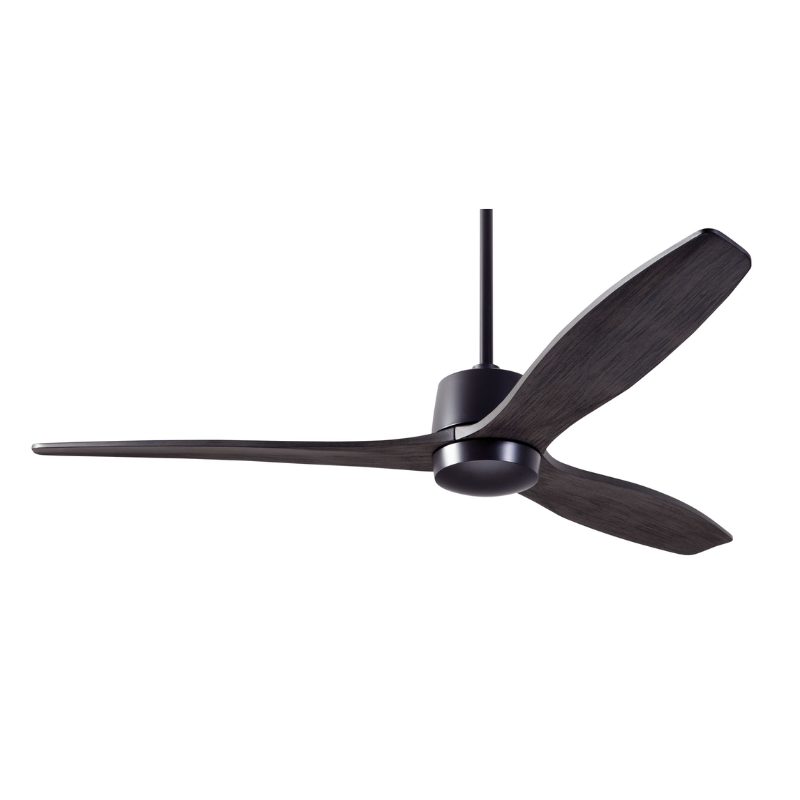

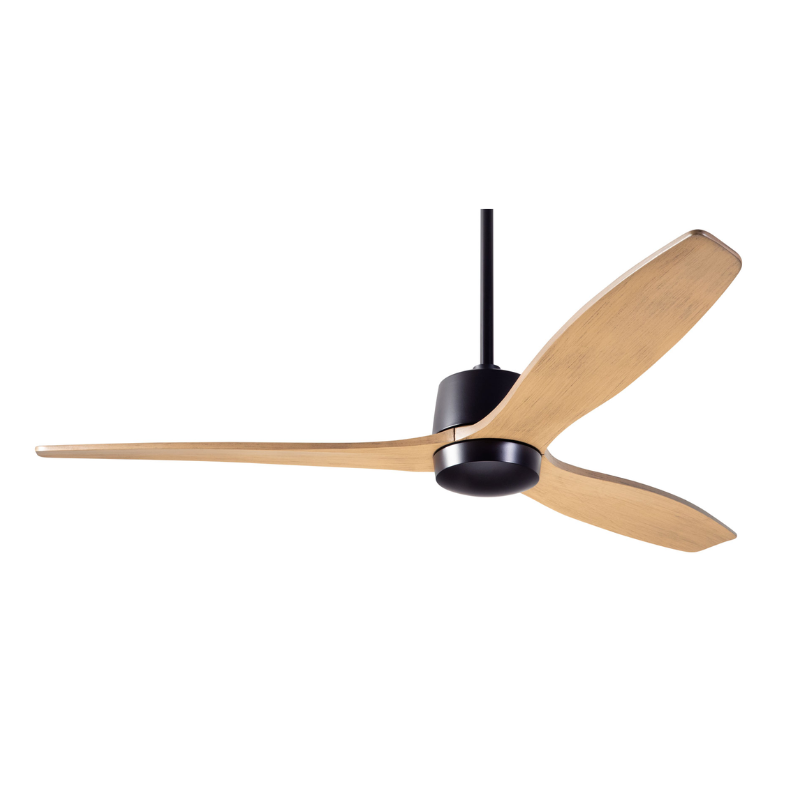

The Arbor DC ceiling fan from The Modern Fan Co. with a 54" span.

Details:

• 6-speed, reversible DC motor
• Die-cast aluminum construction
• 54” span, solid wood blades
• Includes 6” and 16” down rods; longer options are also available
• Slope compatible up to 33°; adapter available for slopes up to 45°
• Designed by Dave Ellis
• ETL listed for dry and damp locations

High-Speed Performance Data:

Based on the DOE standardized test method (installed with a 4.5″ down rod).

• RPM: 205
• CFM (Cubic Feet per Minute): 5,312
• Watts (fan only): 30.68
• CFM/Watt: 173

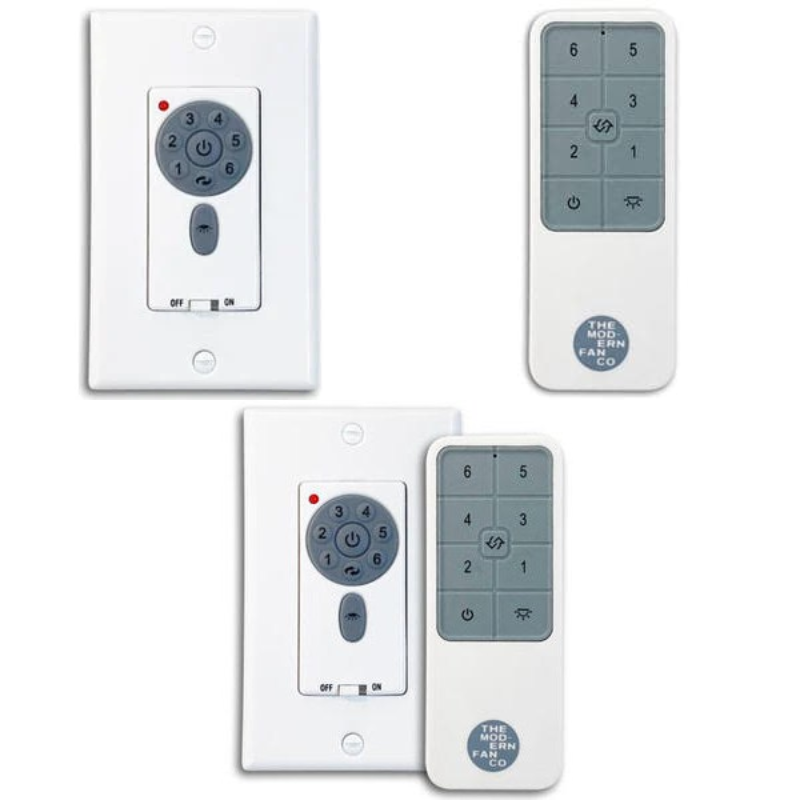

Controller Options:

• Wall Control: For radio frequency operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), decora-style wall plate (which comes in white only), battery, and RF canopy receiver.

• Remote Control: For remote operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. It includes a handset, wall mount holder, batteries, and an RF canopy receiver. This option is for use with an on/off toggle switch providing power supply to the fan.
• Wall/Remote Combo: A combination control set for remote operation of a fan or fan and light. It uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), a Decora-style wall plate (which comes in white only), a handset, batteries, and an RF canopy receiver.

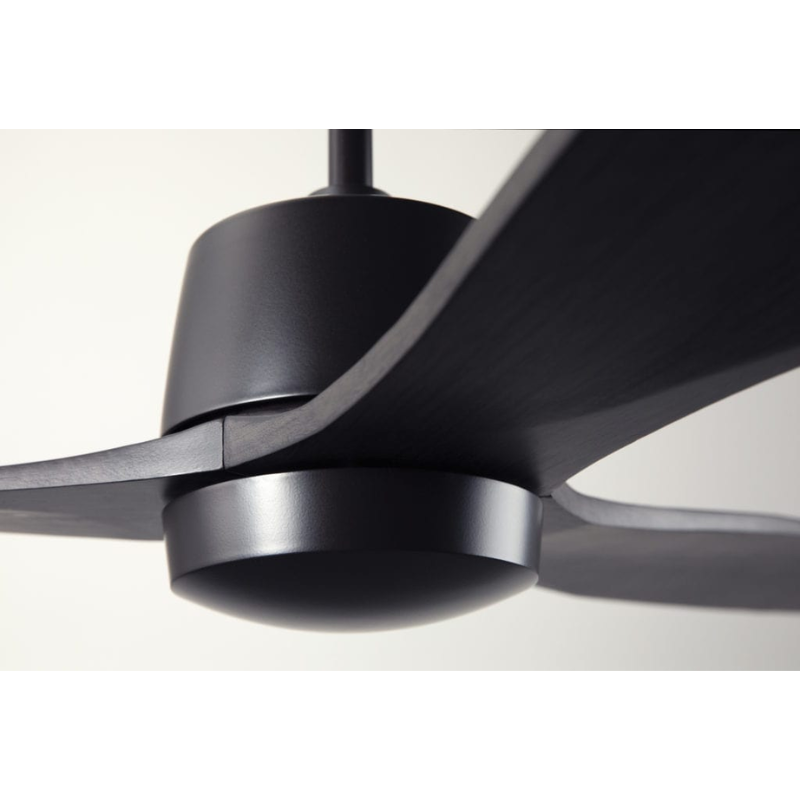

Materials: Die-cast aluminum with solid wood blades

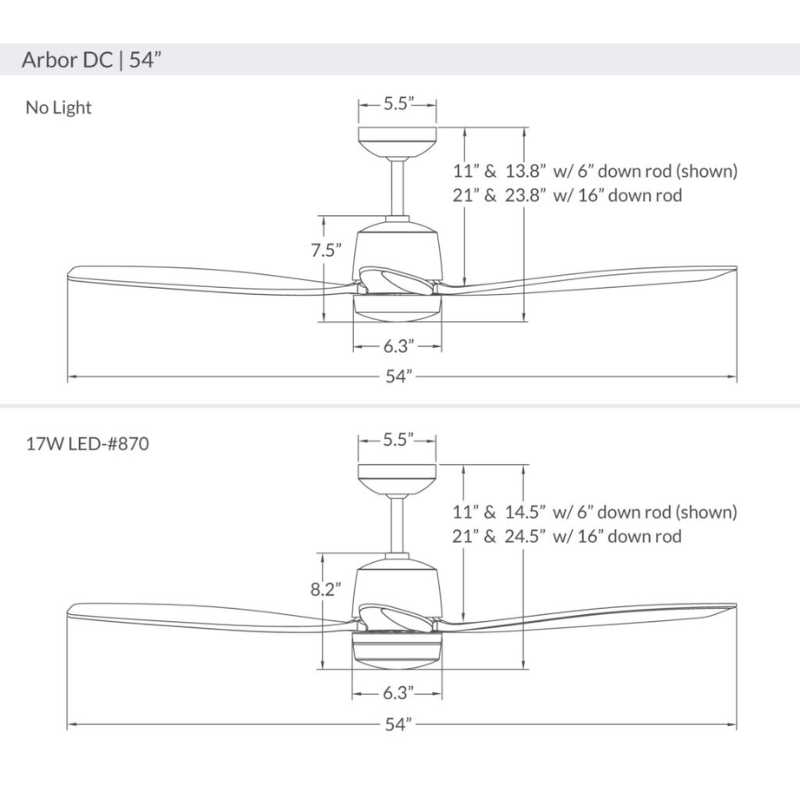

Dimensions (w/ 6" down rod):

•  13.8 H x 54 Dia. inches
• Base Dia. 5.5 inches
• Weight: 13 lbs

Downloads:

• Cutsheet
• Installation Manual

Looking for this fan with an LED option? Check out the Arbor DC LED-54.
