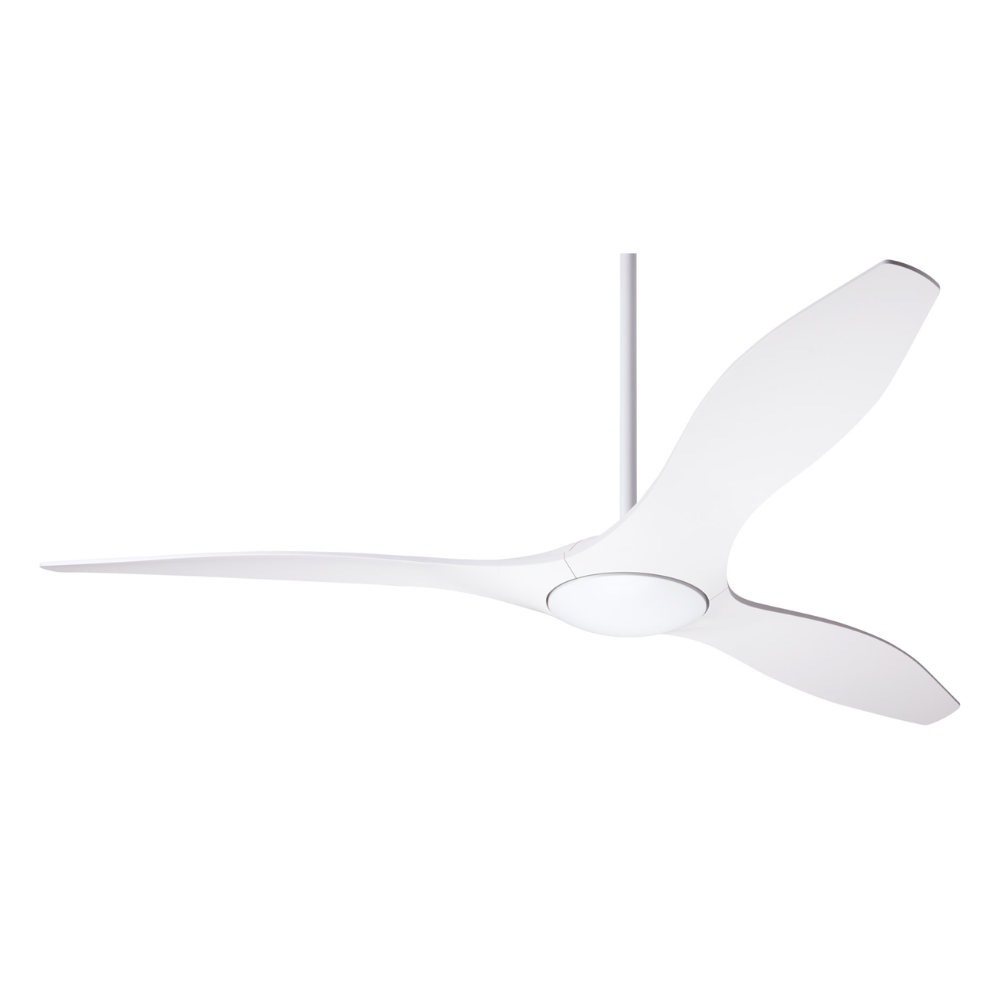

The matte white IC/Brisa DC - 56″ from Modern Fan Co.

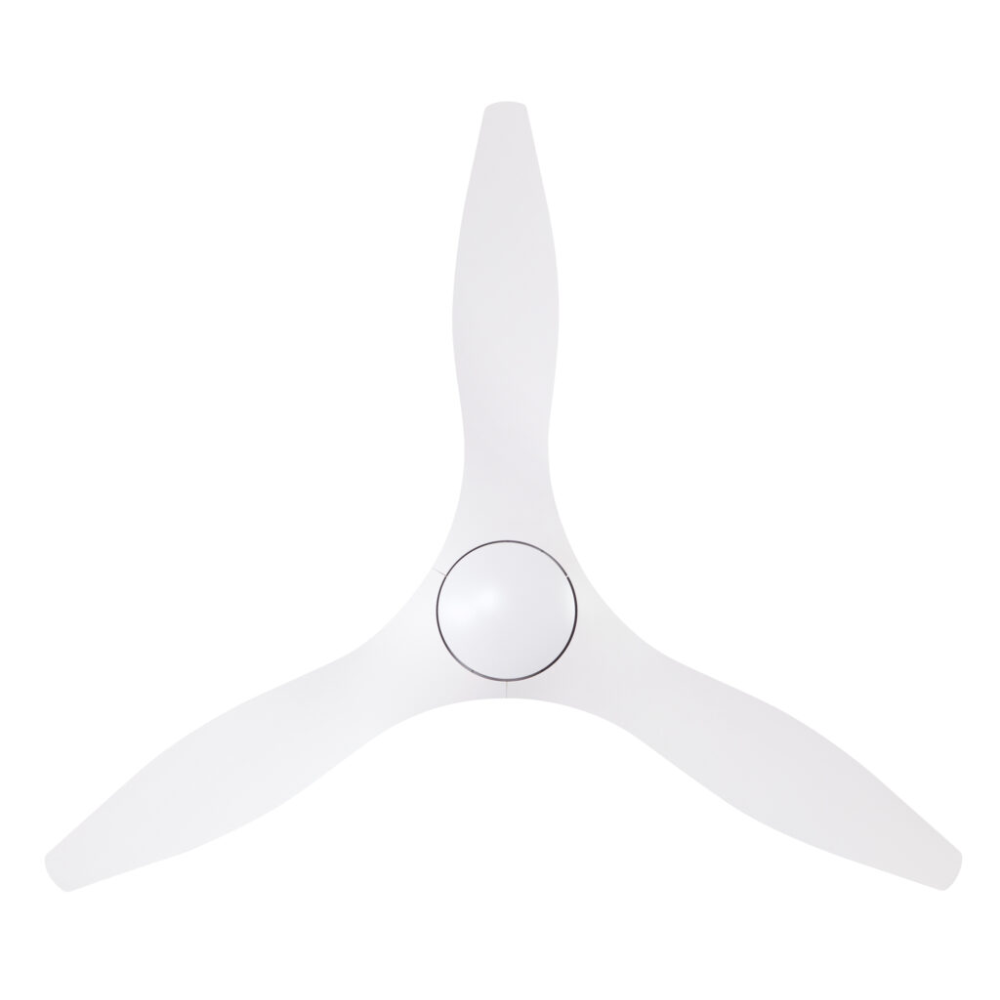

The matte white IC/Brisa DC - 56″ from Modern Fan Co. in a view from the bottom.

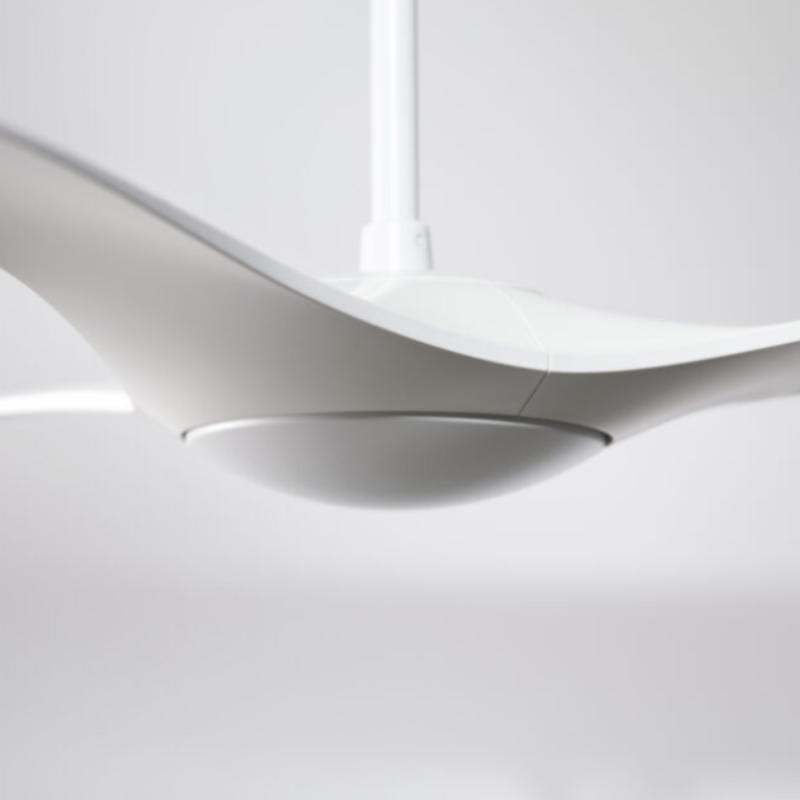

The matte white IC/Brisa DC - 56″ from Modern Fan Co. in a view from the side in a studio.

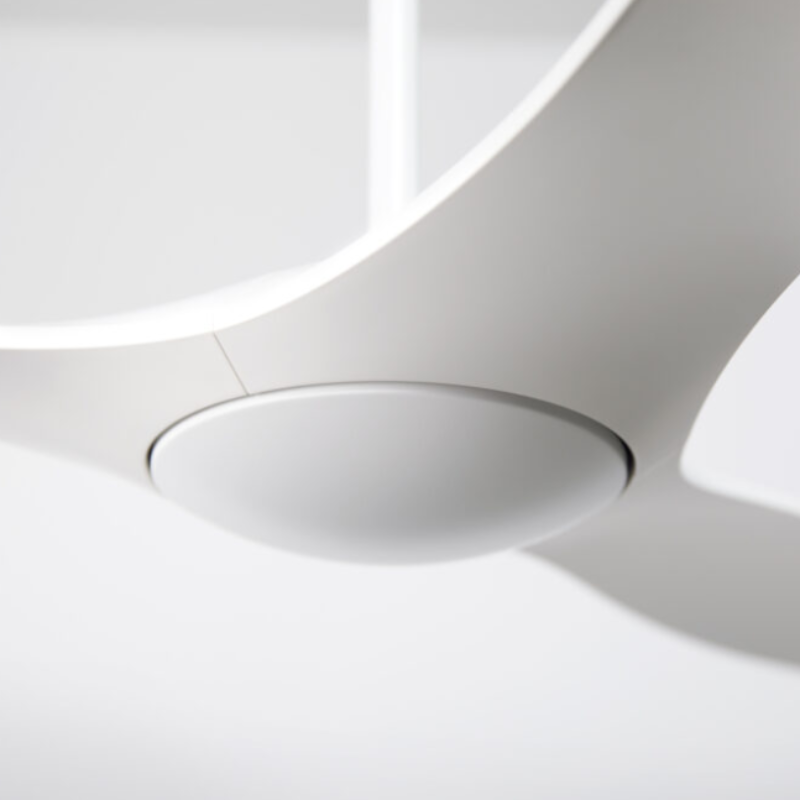

The matte white IC/Brisa DC - 56″ from Modern Fan Co. in a close up within a living space.

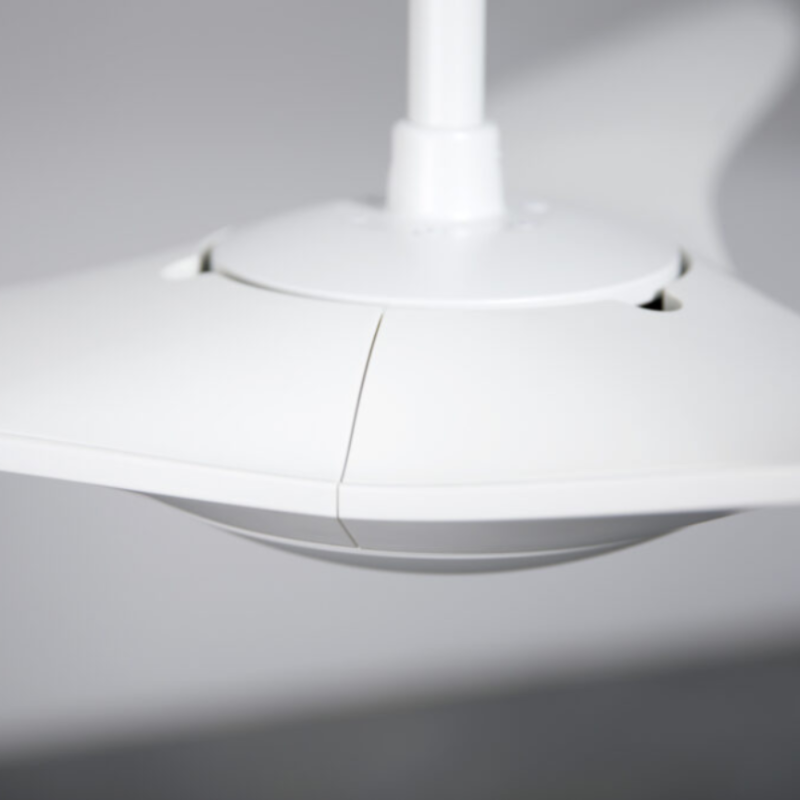

The matte white IC/Brisa DC - 56″ from Modern Fan Co. showing the top within a family area.

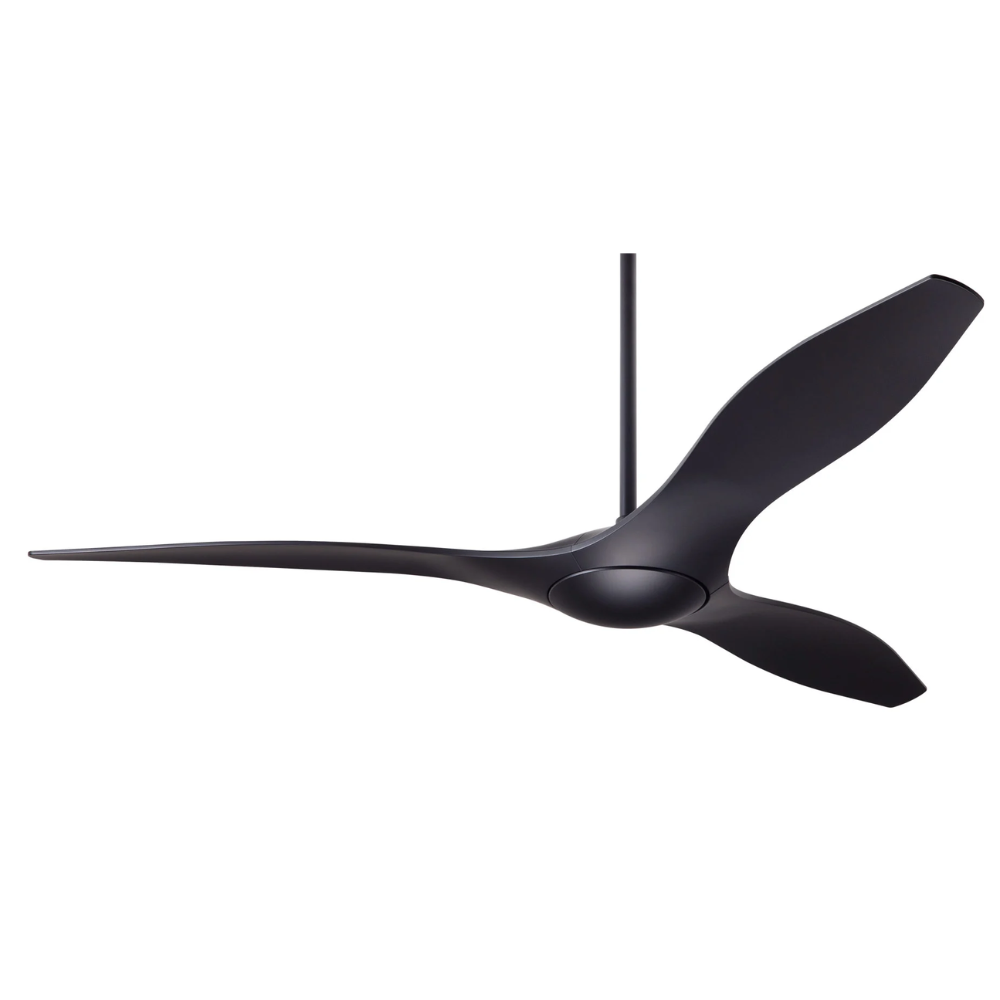

The matte black IC/Brisa DC - 56″ from Modern Fan Co.

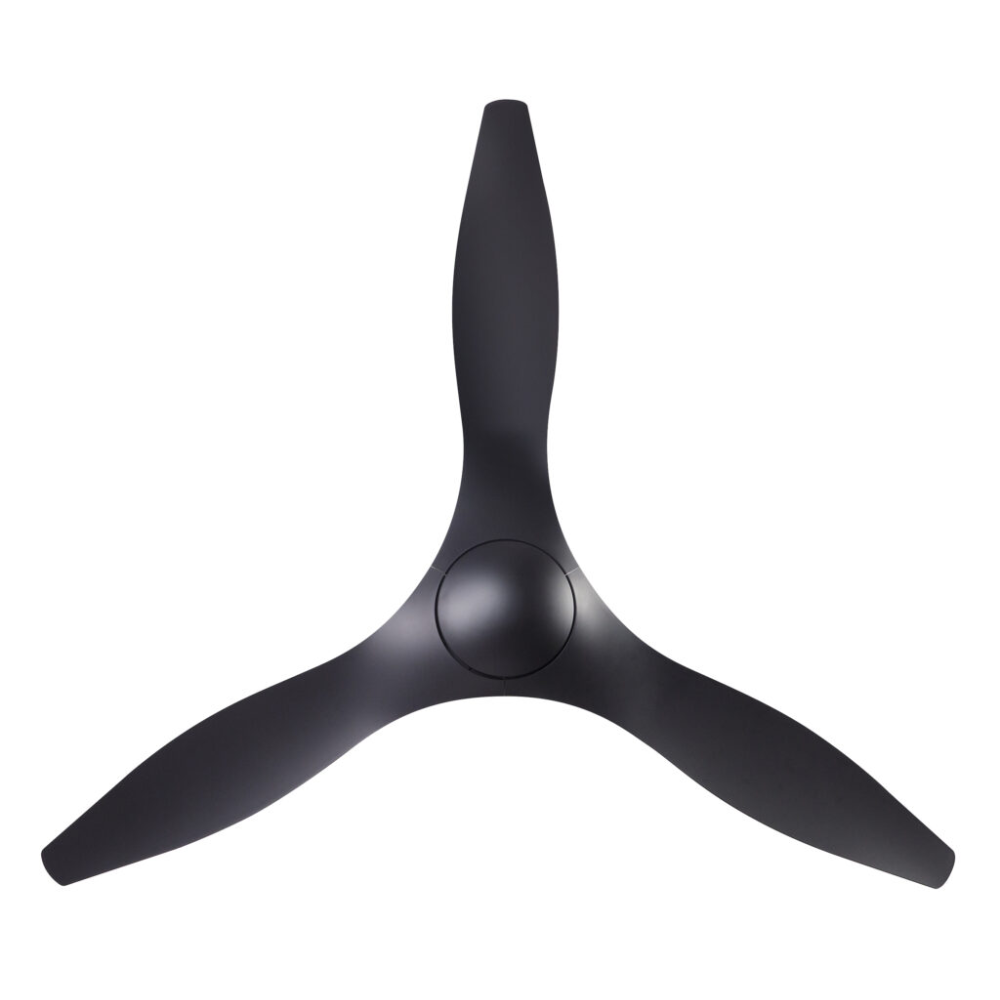

The matte black IC/Brisa DC - 56″ from Modern Fan Co. in a view from the bottom.

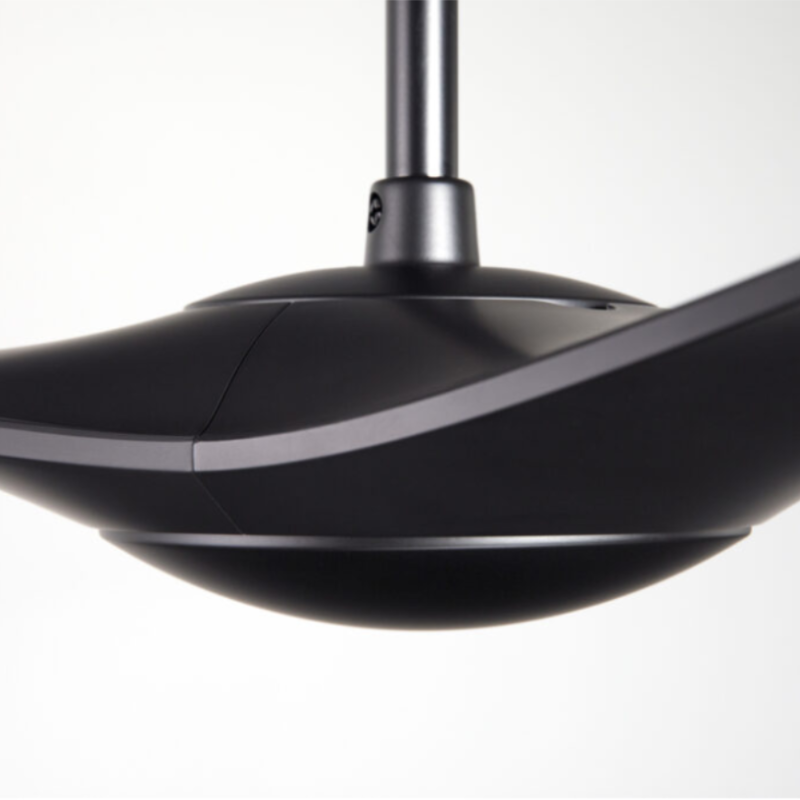

The matte black IC/Brisa DC - 56″ from Modern Fan Co. in a view from the side within a studio.

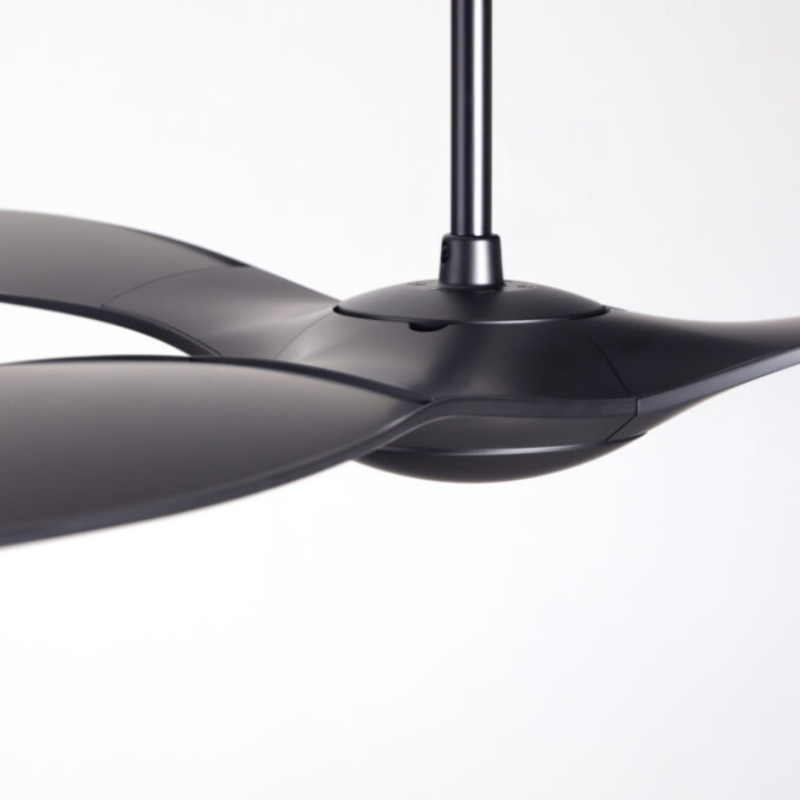

The matte black IC/Brisa DC - 56″ from Modern Fan Co. focusing on the blades within a living space.

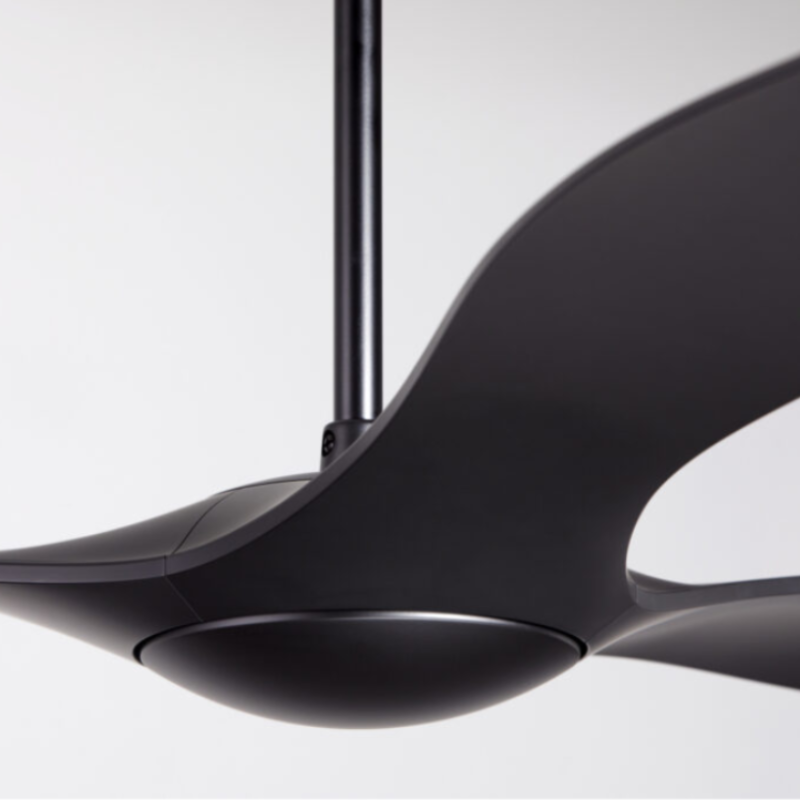

The matte black IC/Brisa DC - 56″ from Modern Fan Co. in a close up within a family area.

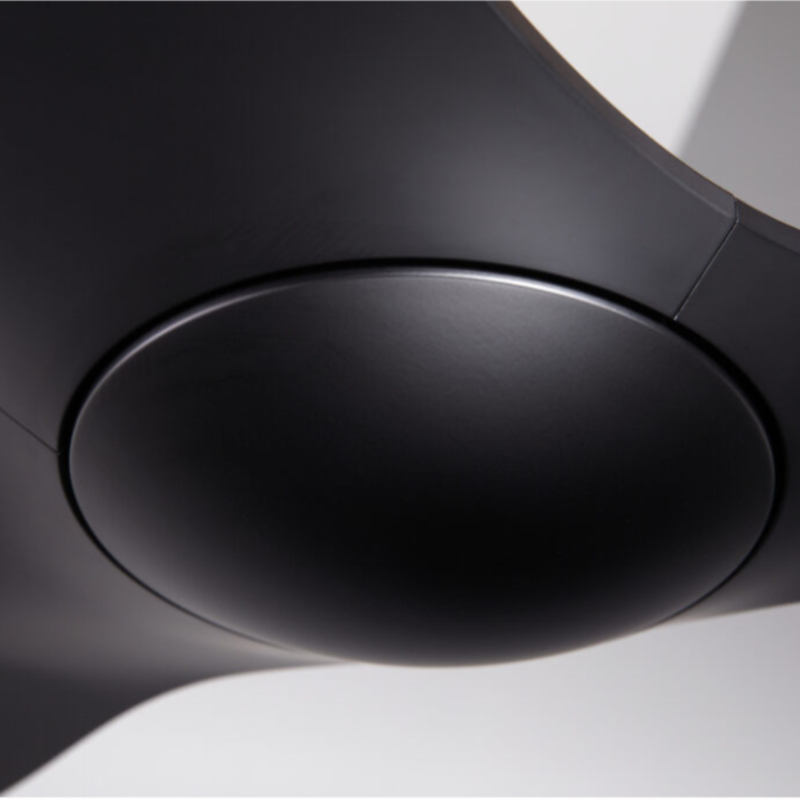

The matte black IC/Brisa DC - 56″ from Modern Fan Co. in detail.

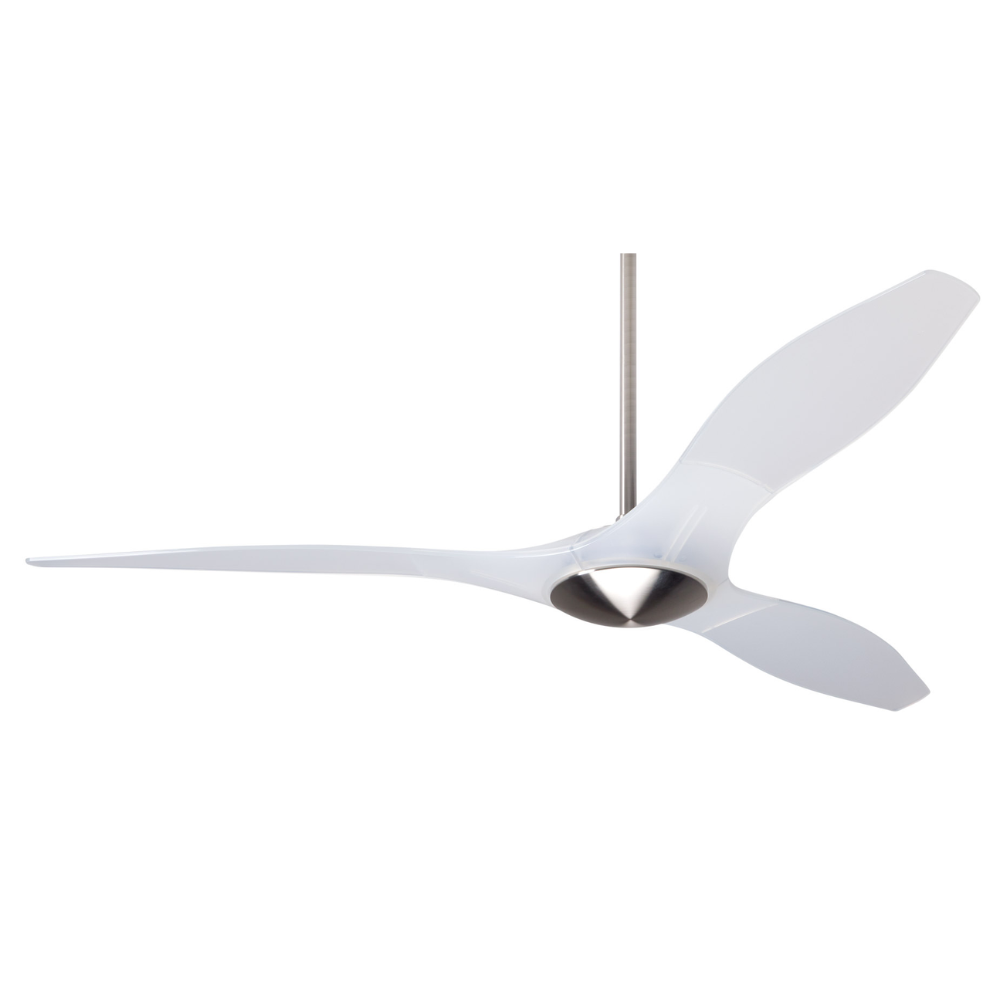

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co.

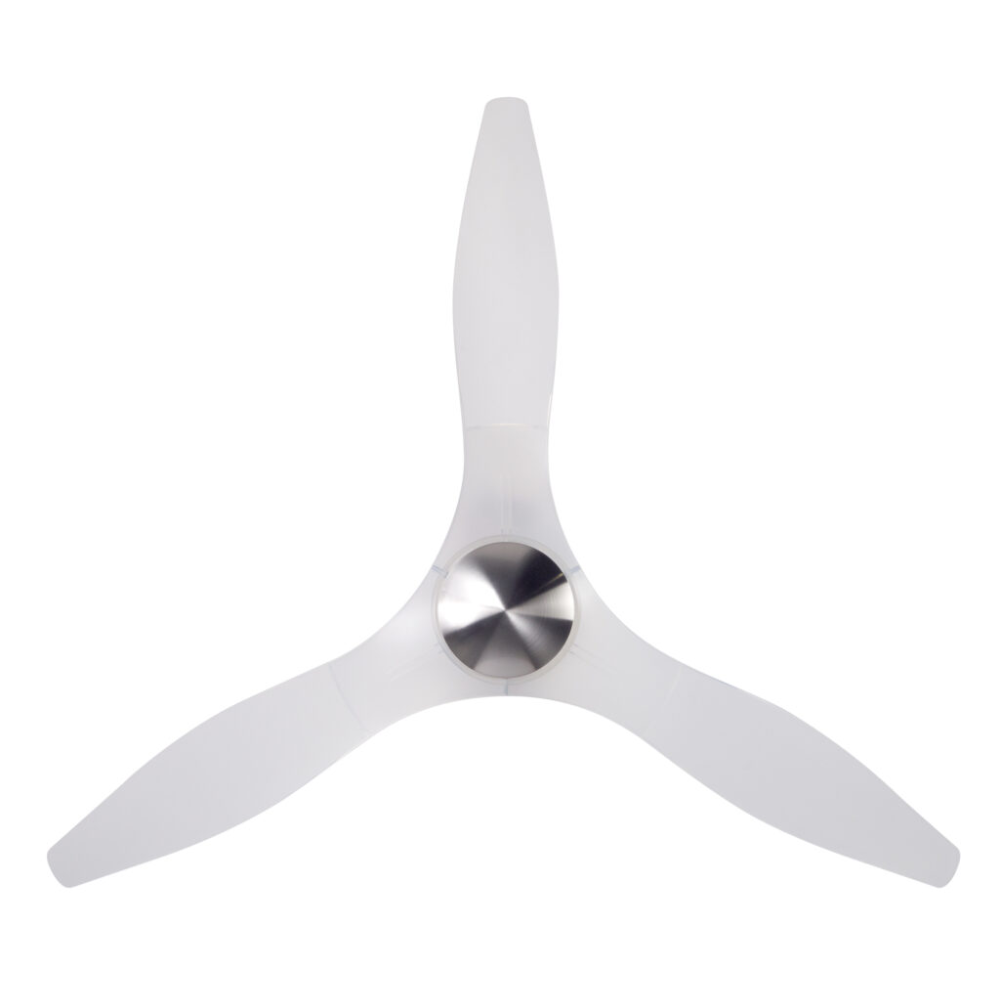

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co. in a view from the bottom.

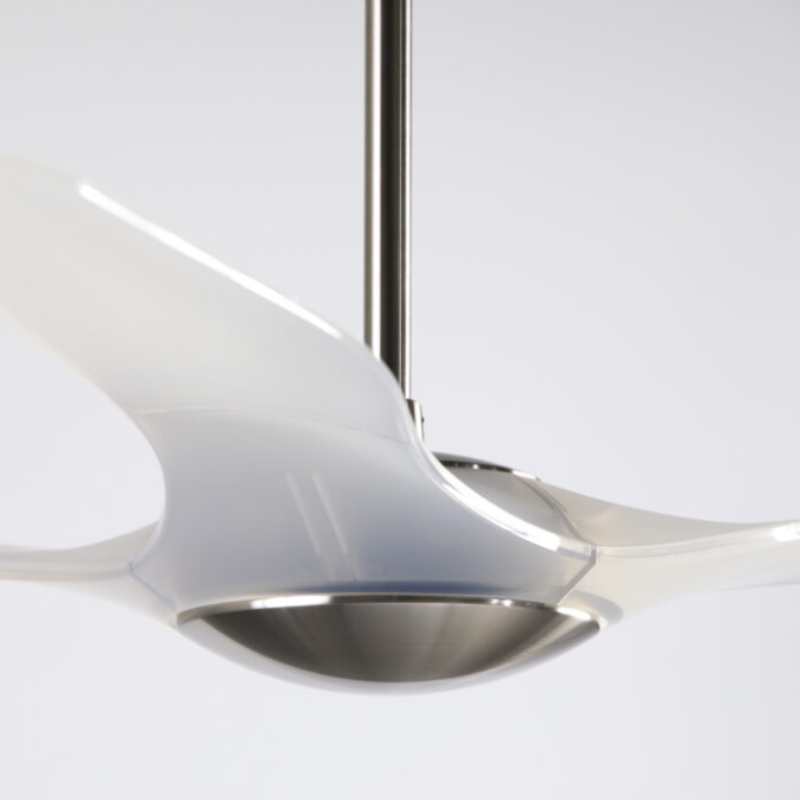

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co. in a close up within a studio.

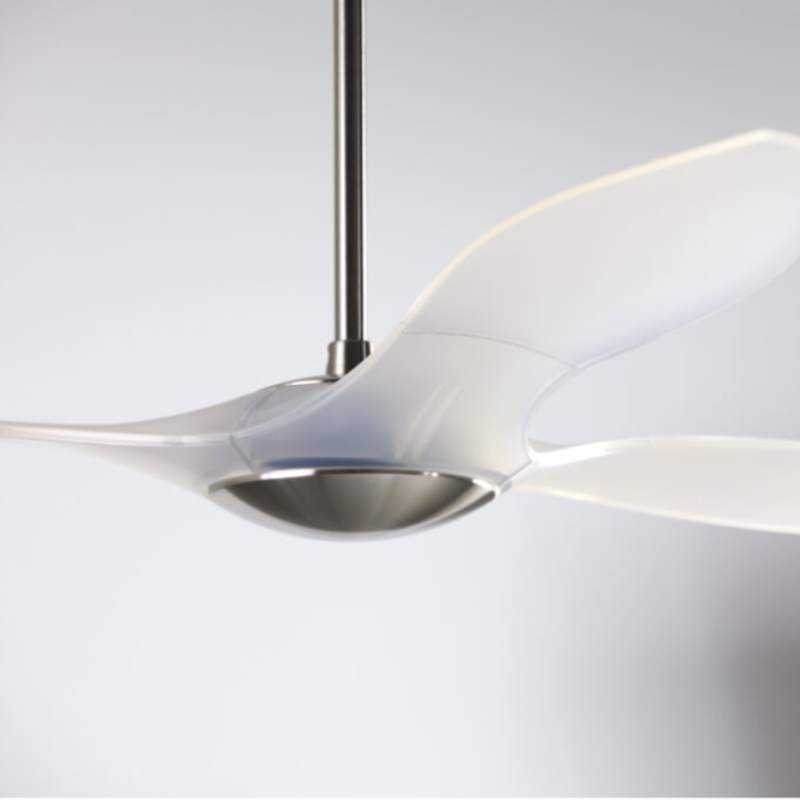

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co. shown in detail within a living space.

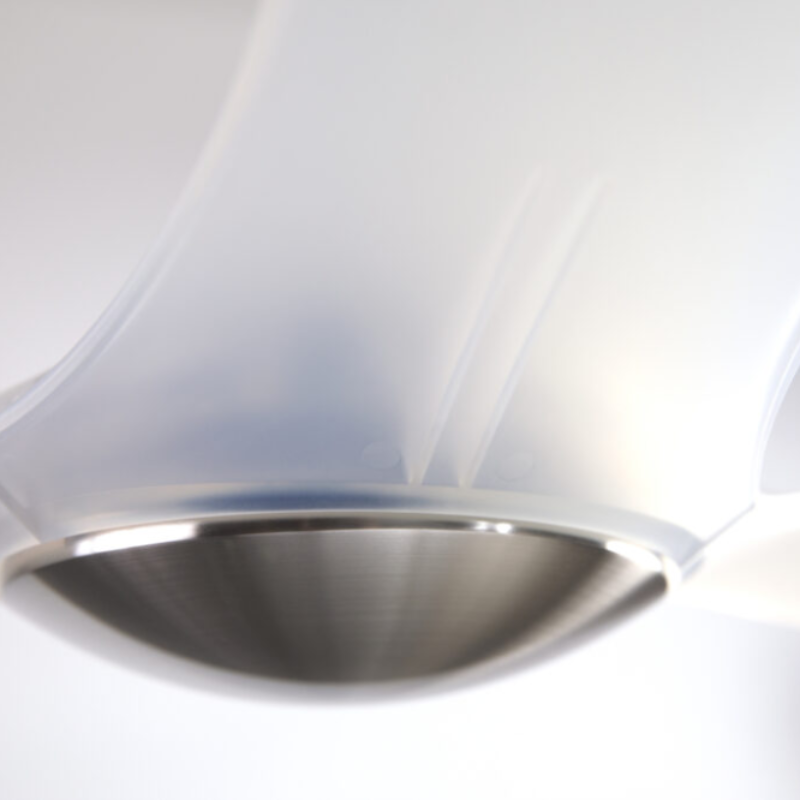

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co. shown close up in a living room.

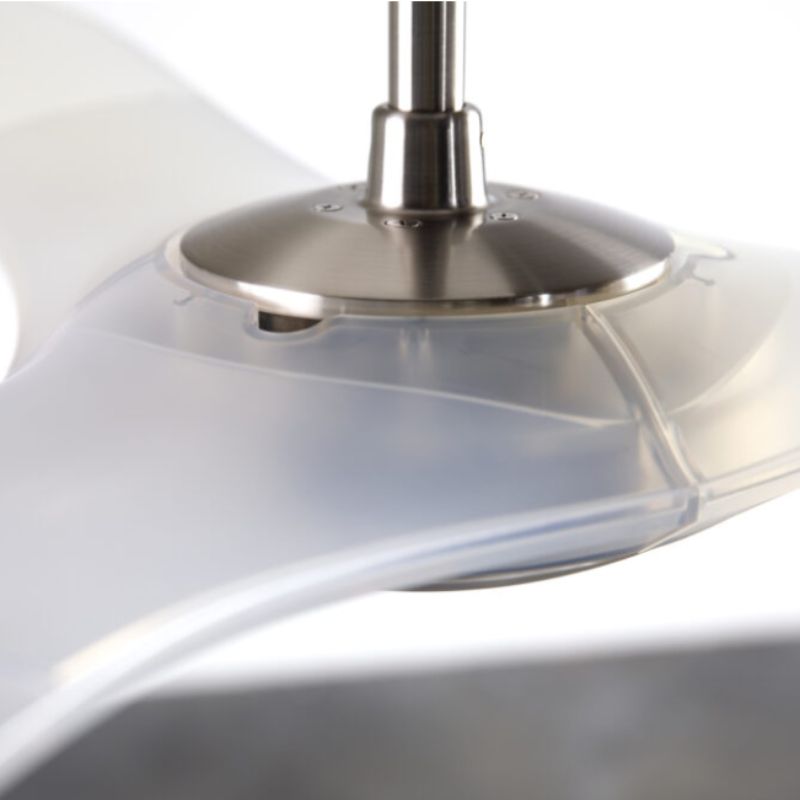

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co. in a view from the top in a family area.

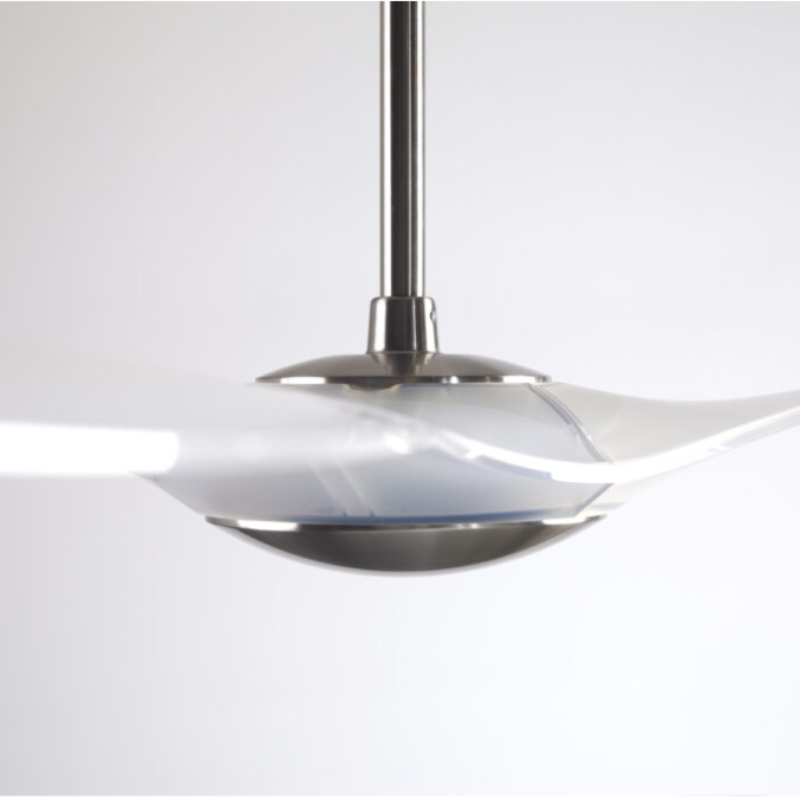

The bright nickel and translucent IC/Brisa DC - 56″ from Modern Fan Co. in a side view within a family space.

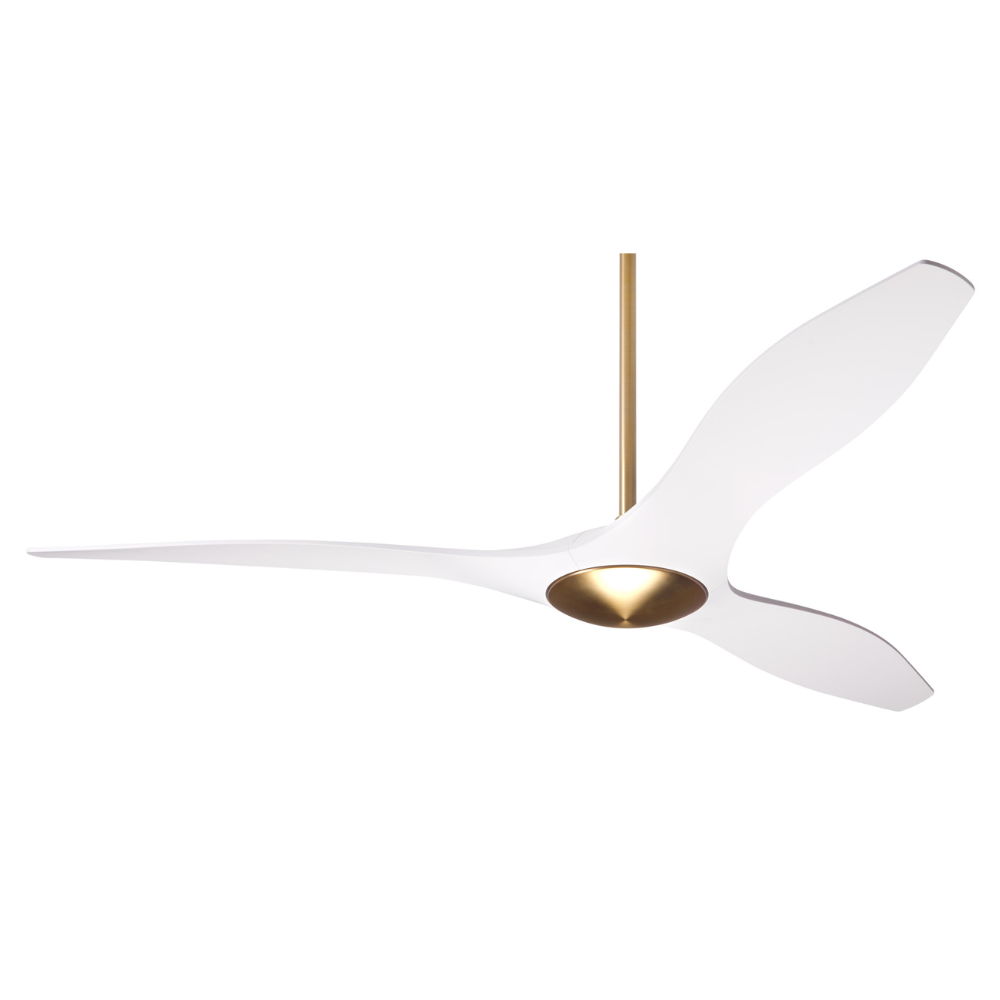

The satin brass and matte white IC/Brisa DC - 56″ from Modern Fan Co.

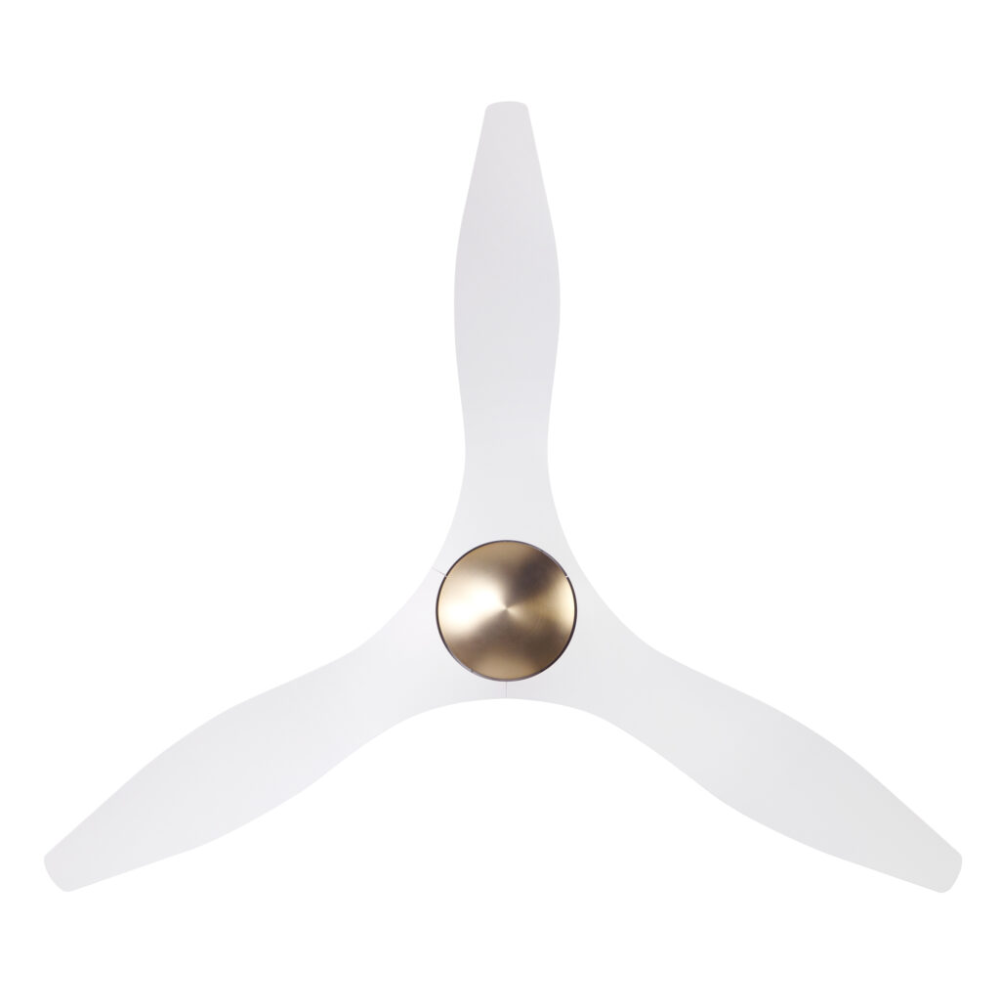

The satin brass and matte white IC/Brisa DC - 56″ from Modern Fan Co. in a view from the bottom.

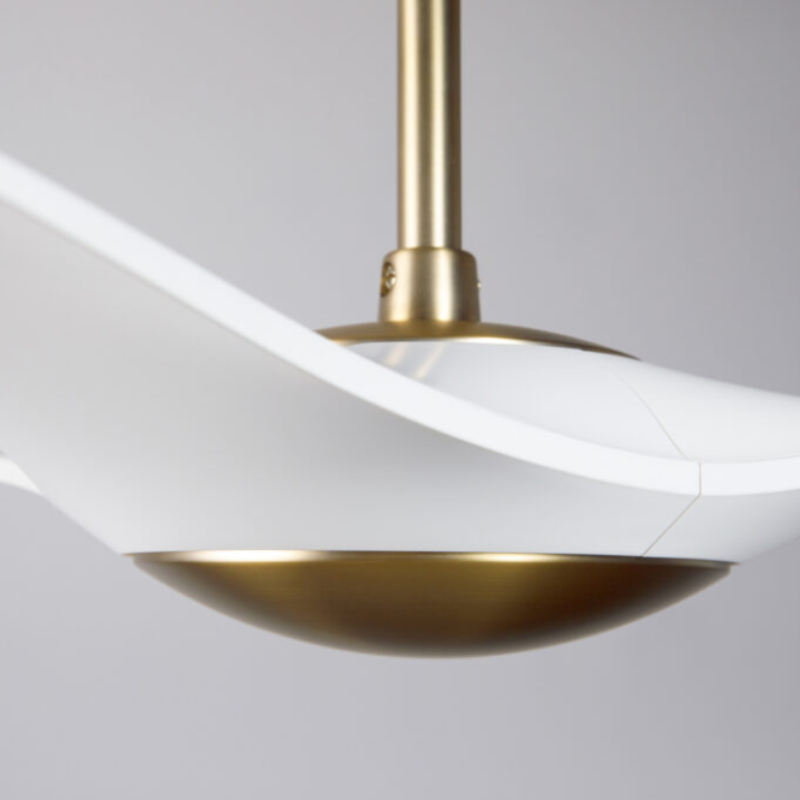

The satin brass and matte white IC/Brisa DC - 56″ from Modern Fan Co. in a view from the side within a living space.

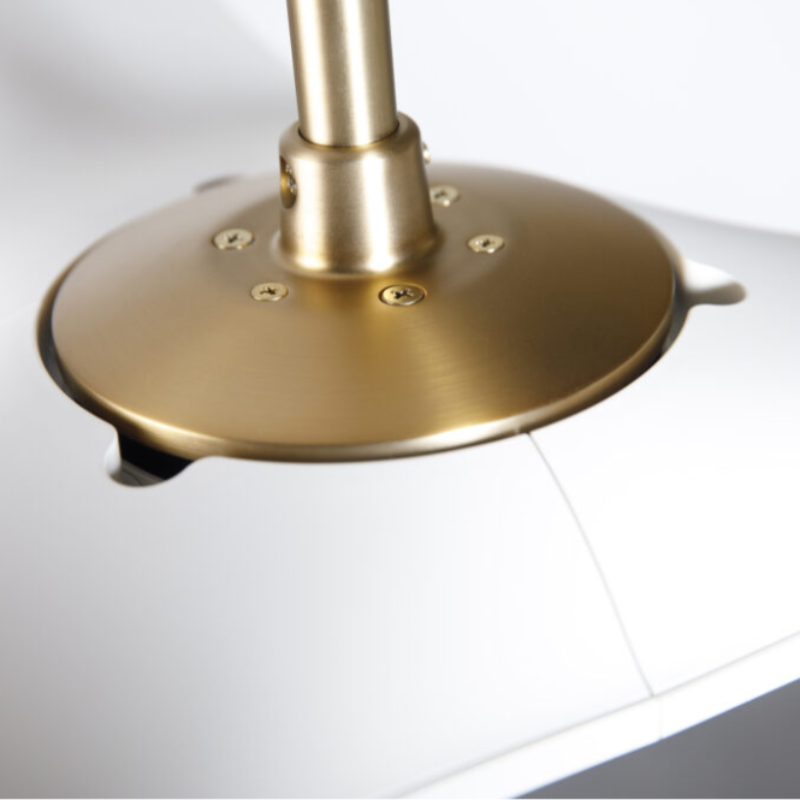

The satin brass and matte white IC/Brisa DC - 56″ from Modern Fan Co. shown close up within a living room.

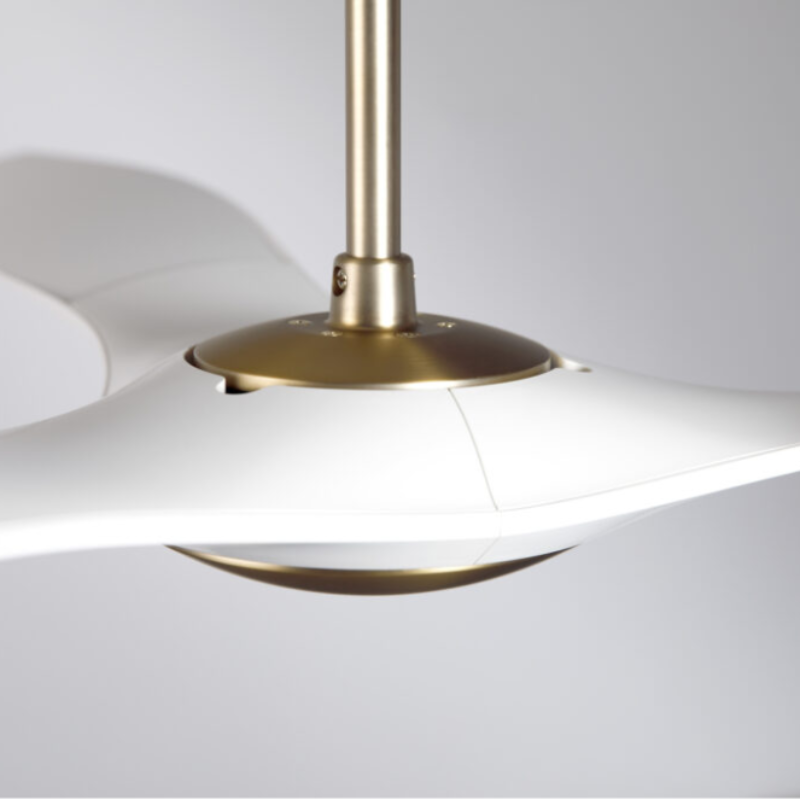

The satin brass and matte white IC/Brisa DC - 56″ from Modern Fan Co. shown from the side in a family area.

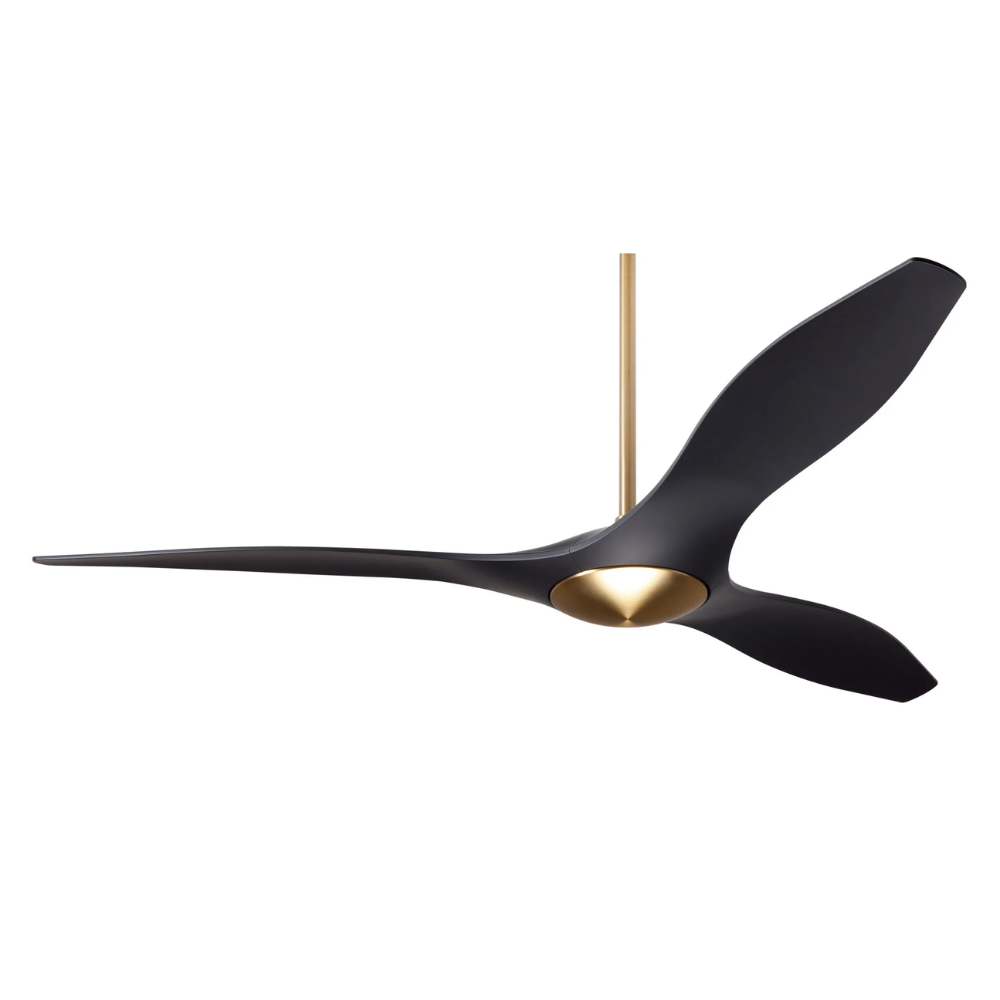

The satin brass and matte black IC/Brisa DC - 56″ from Modern Fan Co.

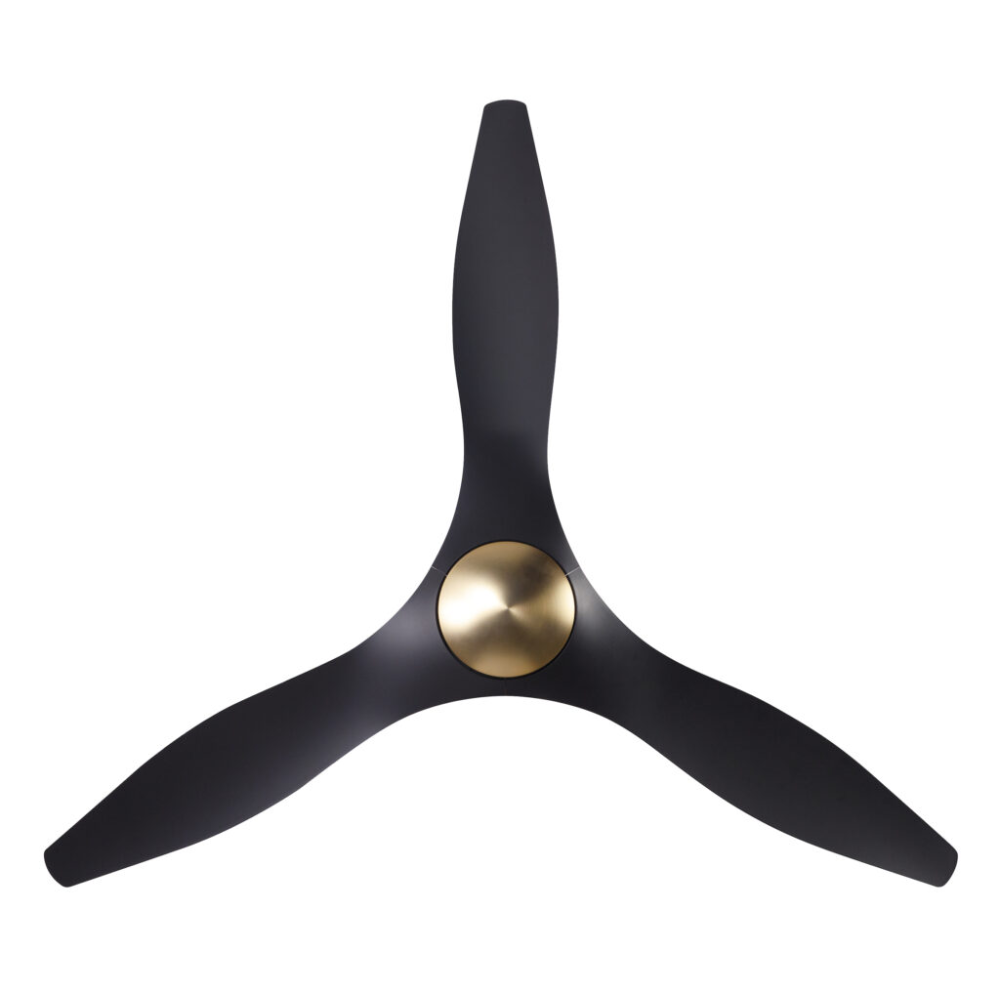

The satin brass and matte black IC/Brisa DC - 56″ from Modern Fan Co. in a view from the bottom.

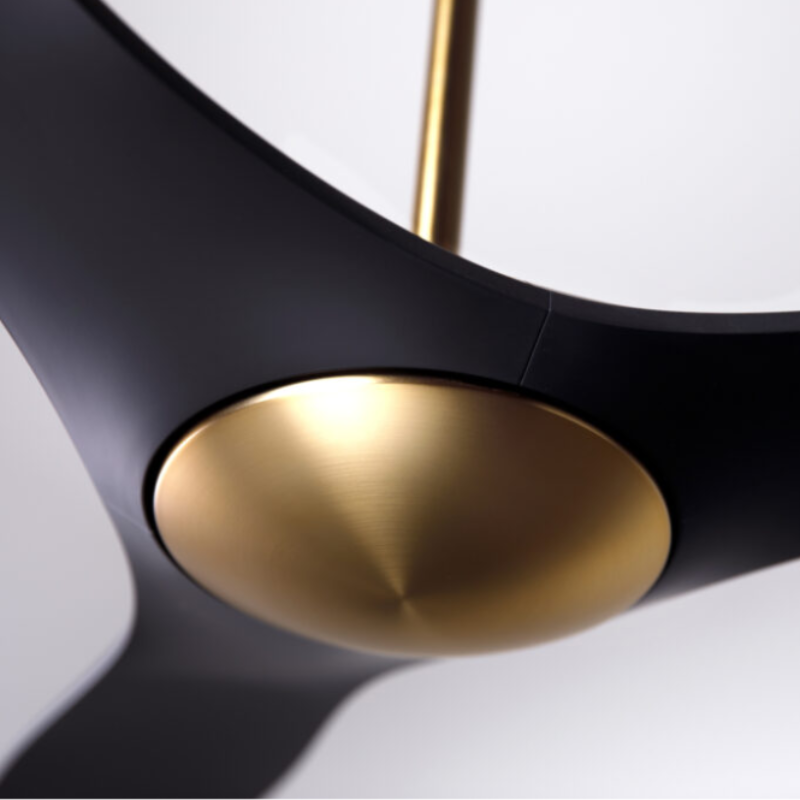

The satin brass and matte black IC/Brisa DC - 56″ from Modern Fan Co. shown in detail within a family area.

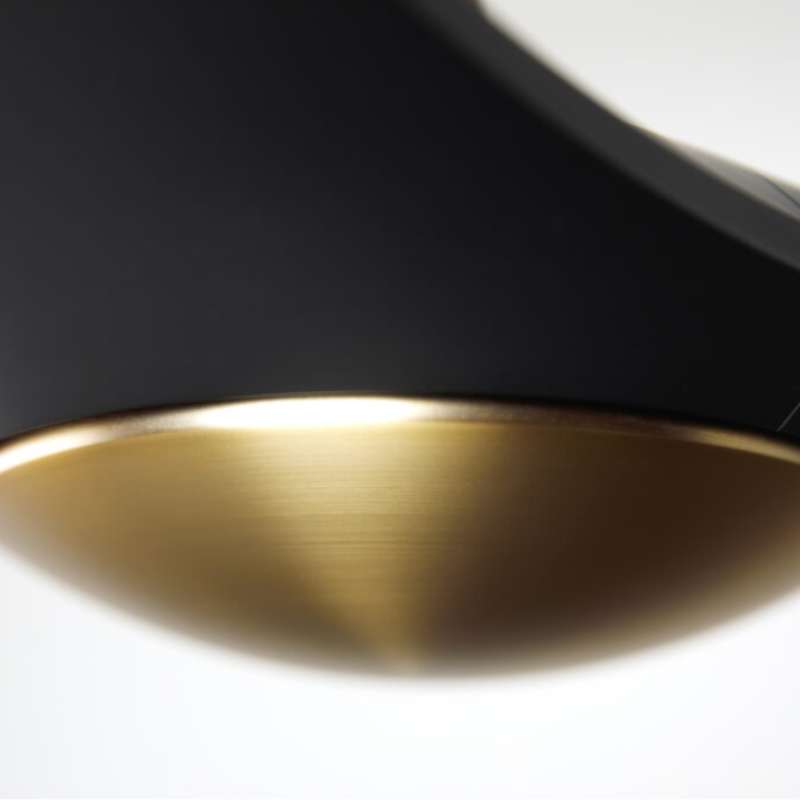

The satin brass and matte black IC/Brisa DC - 56″ from Modern Fan Co. close up in a living space.
The IC/Brisa DC - 56″ from Modern Fan Co. promotional video showcasing the fans. all-groups

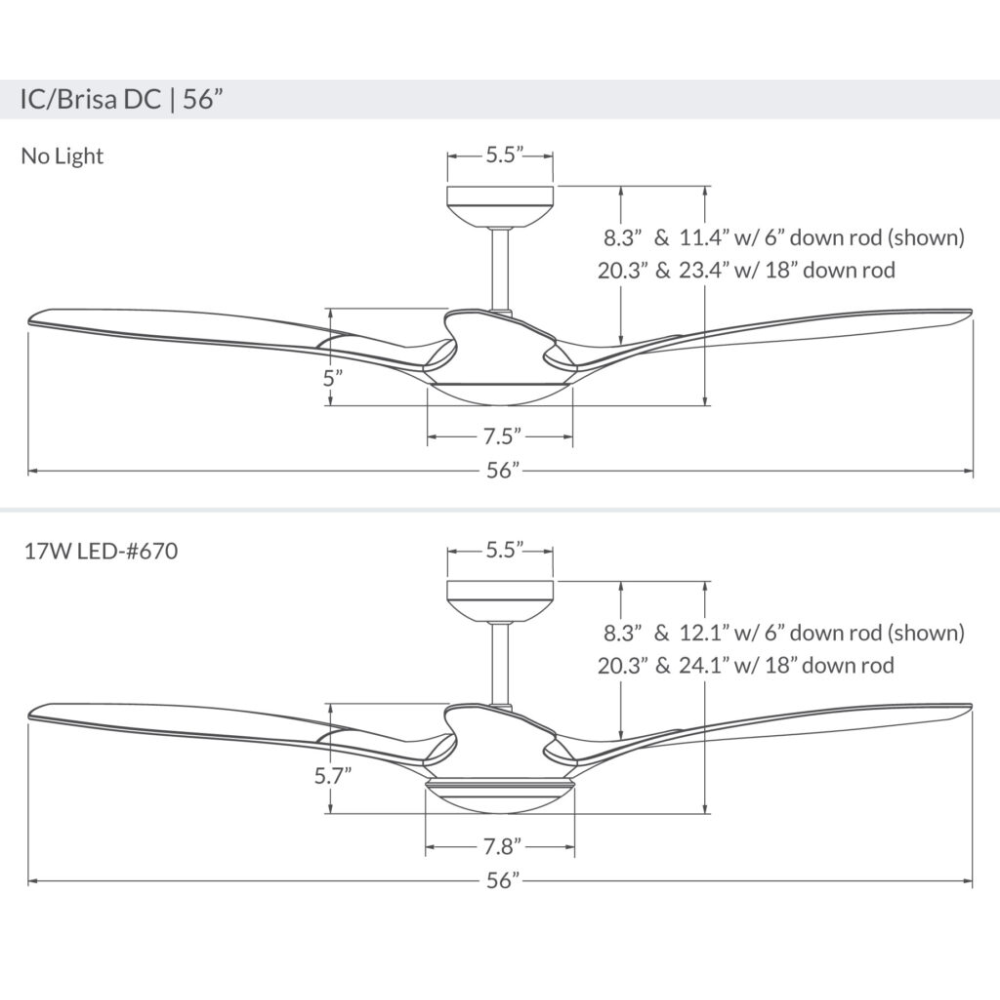

The IC/Brisa DC - 56″ from Modern Fan Co. dimensions. all-groups

IC/Brisa DC - 56″

By Modern Fan Co.
$680.00
Color: Matte White
Controller Option

The IC/Brisa DC ceiling fan from The Modern Fan Co. with a 56" span.

Details:

  • 6-speed, reversible DC motor
  • 56” span, injection-molded ABS blades (matte white, matte black or translucent)
  • Includes 6” and 18” down rods; other options are also available
  • Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant
  • Slope compatible up to 20°; adapter available for slopes up to 45°
  • Designed by Guto Indio da Costa
  • ETL listed for dry and damp locations

High-Speed Performance Data:

Based on the DOE standardized test method (installed with an 8″ down rod).

  • RPM: 185
  • CFM (Cubic Feet per Minute): 5,584
  • Watts (fan only): 29.89
  • CFM/Watt:

Controller Options:

  • Wall Control: For radio frequency operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), decora-style wall plate (which comes in white only), battery, and RF canopy receiver.
  • Remote Control: For remote operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. It includes a handset, wall mount holder, batteries, and an RF canopy receiver. This option is for use with an on/off toggle switch providing power supply to the fan.
  • Wall/Remote Combo: A combination control set for remote operation of a fan or fan and light. It uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), a Decora-style wall plate (which comes in white only), a handset, batteries, and an RF canopy receiver.

Materials: Die-cast aluminum and injection-molded ABS construction

Dimensions (w/ 6" down rod):

  • 11.4 H x 56 Dia. inches
  • Base Dia. 5.5 inches
  • Weight: 12.0 lbs (5.44 kgs)

Downloads:

Looking for this fan with an LED option? Check out the IC/Brisa DC LED - 56".

SKU: MFC-BRI-MW-56-NL-WC
