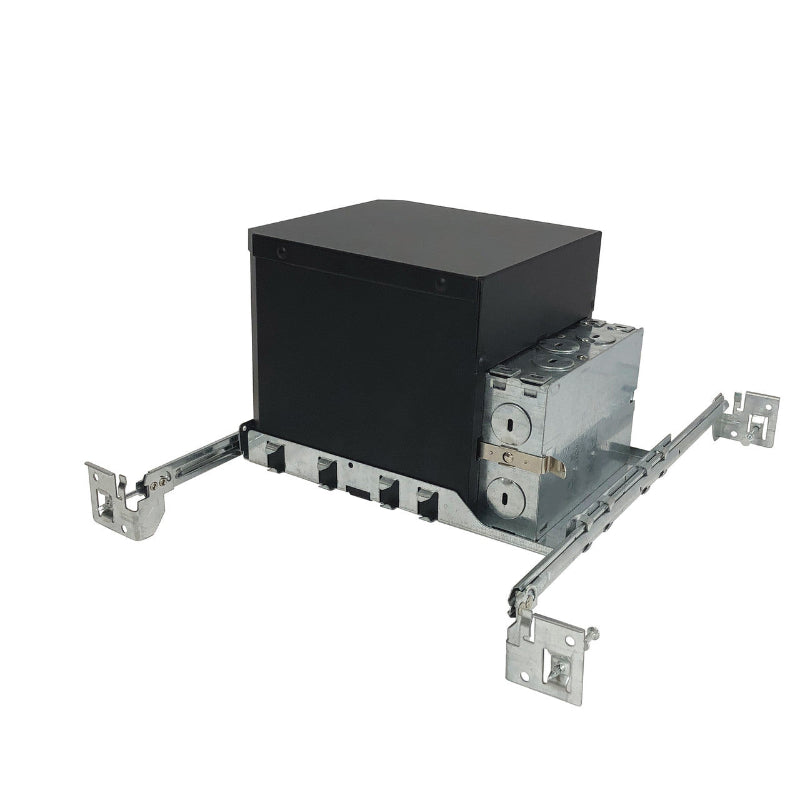

NSIC-4LMRAT 4” Max. Adjustability LED Dedicated ICAT Housing
4″ Max. Adjustability LED Dedicated IC Airtight housings are designed for use with Pearl LED retrofit luminares. Housing does not include a “can” inside, allowing for adjustable reflectors to adjust up to 35°. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling.
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Airtight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with Pearl LED Series to allow maximum adjustability for adjustable reflectors. Housing does not include a “can” inside, allow for adjustable reflectors to adjust up to 35°.
“IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam.
Features:
- Allows adjustable reflectors the maximum angle or rotation and tilt
- IC Airtight energy saving by reducing the flow of air through the ceiling
- Rated for direct contact with insulation
- cULus listed for damp locations (wet locations when used with compatible luminaires)
- 24-1/2" Bar hangers with captive nails and alignment foot
- Input Voltage: 120V
- Wattage: 12W Max
- Dimming: Triac or ELV
Materials: Steel
Dimensions: 8.75 L x 6.25 W x 5.5 D inches; 4 3/8" ceiling cut-out
Compatibility:
- NPR-4RC 4" Pearl Round Adjustable Cone
- NPR-4RG 4" Pearl Round Adjustable Gimbal
- NPR-4RPH WET 4" Pearl Round Fixed Pinhole (Wet Listed)
- NPR-4RPHA 4" Pearl Round Adjustable Pinhole
- NPR-4RNB WET 4" Pearl Round Bullnose (Wet Listed)
- NPR-4RNDC WET 4" Pearl Round Reflector (Wet Listed)
- NPR-4RSL 4" Pearl Round Adjustable Slot Aperture
- NPR-4SC 4" Pearl Square Adjustable Cone
- NPR-4SG 4" Pearl Square Adjustable Gimbal
- NPR-4SNB WET 4" Pearl Square Bullnose (Wet Listed)
- NPR-4SNDC WET 4" Pearl Square Reflector with Round Aperture
- NPR-4SNDSQ WET 4" Pearl Square Reflector with Square Aperture
