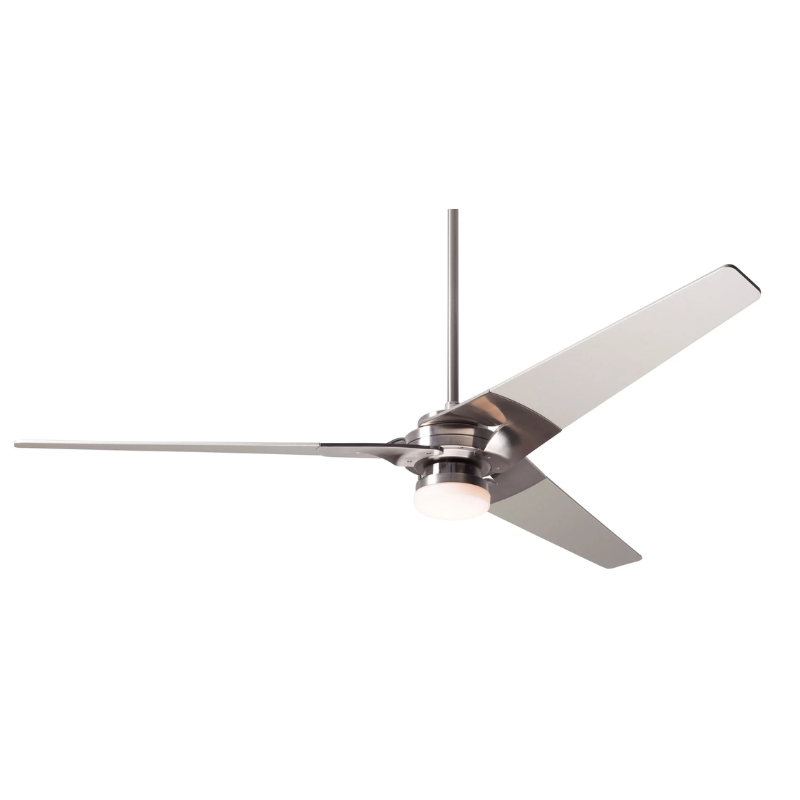

The Torsion 17W LED—62" by Modern Fan Co. with the bright nickel body and nickel blades.

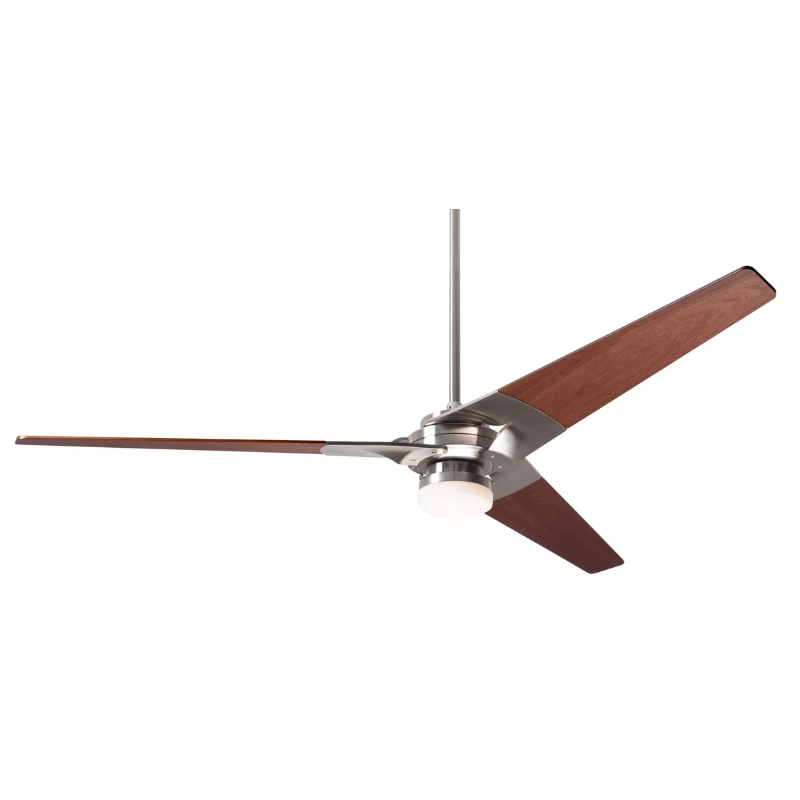

The Torsion 17W LED - 62" by Modern Fan Co. with the bright nickel body and mahogany blades.
The Torsion 17W LED - 62" by Modern Fan Co. with the bright nickel body and maple blades.

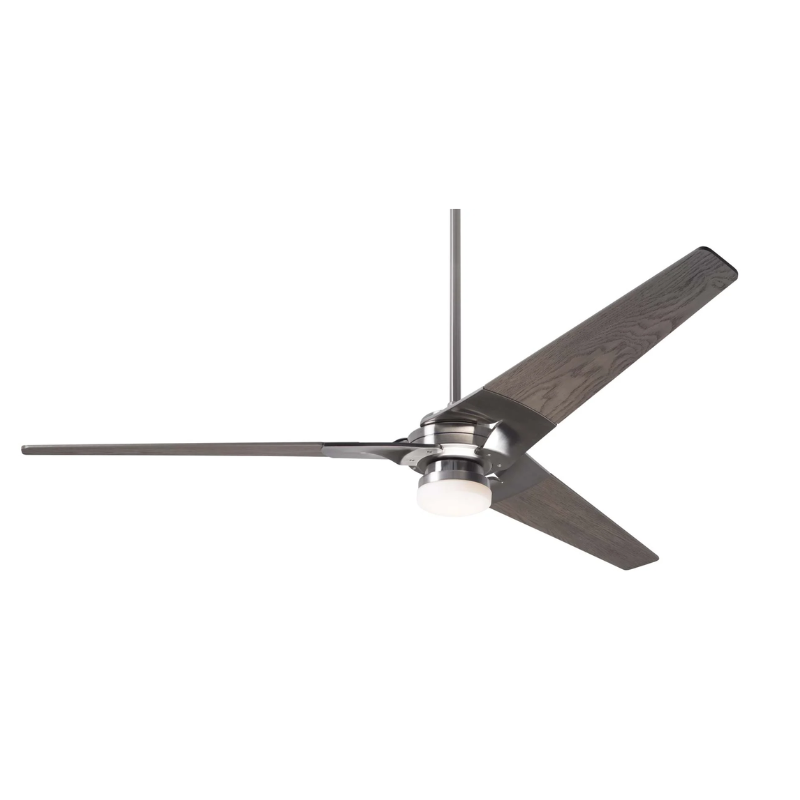

The Torsion 17W LED - 62" by Modern Fan Co. with the bright nickel body and graywash blades.

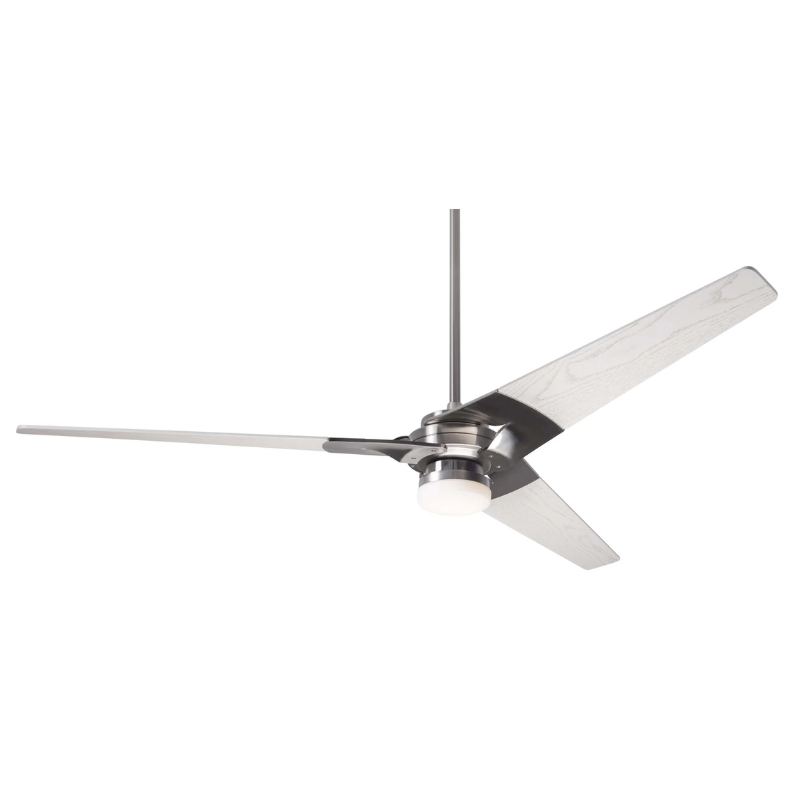

The Torsion 17W LED - 62" by Modern Fan Co. with the bright nickel body and whitewash blades.

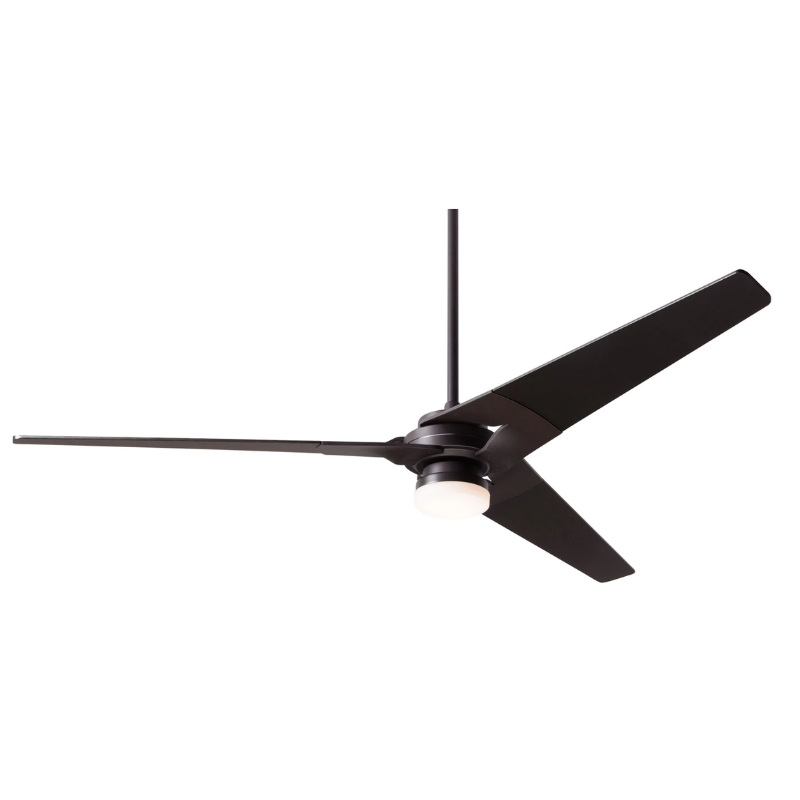

The Torsion 17W LED - 62" by Modern Fan Co. with the dark bronze body and black blades.

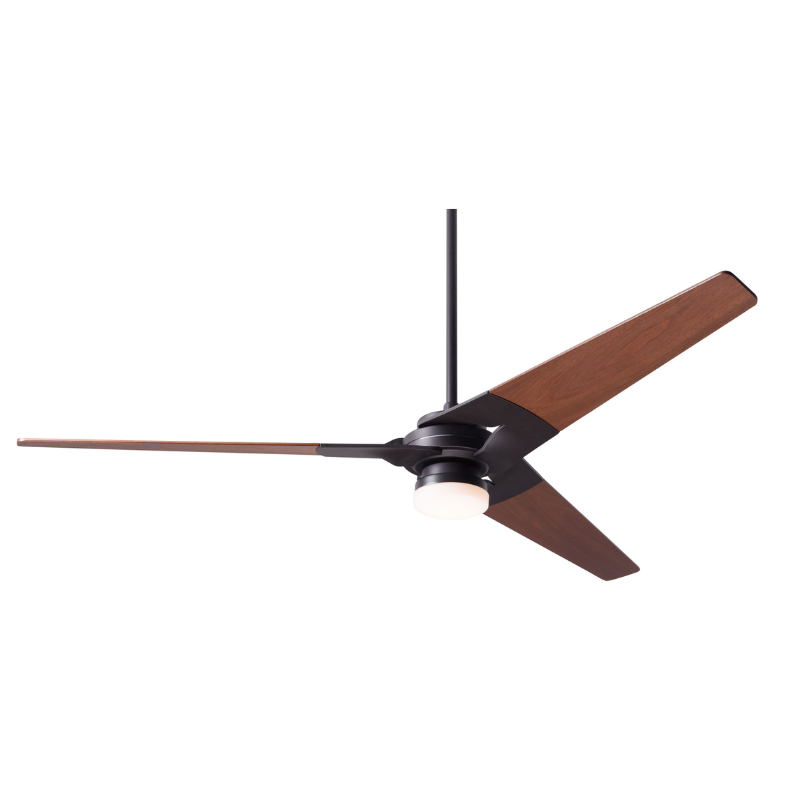

The Torsion 17W LED - 62" by Modern Fan Co. with the dark bronze body and mahogany blades.

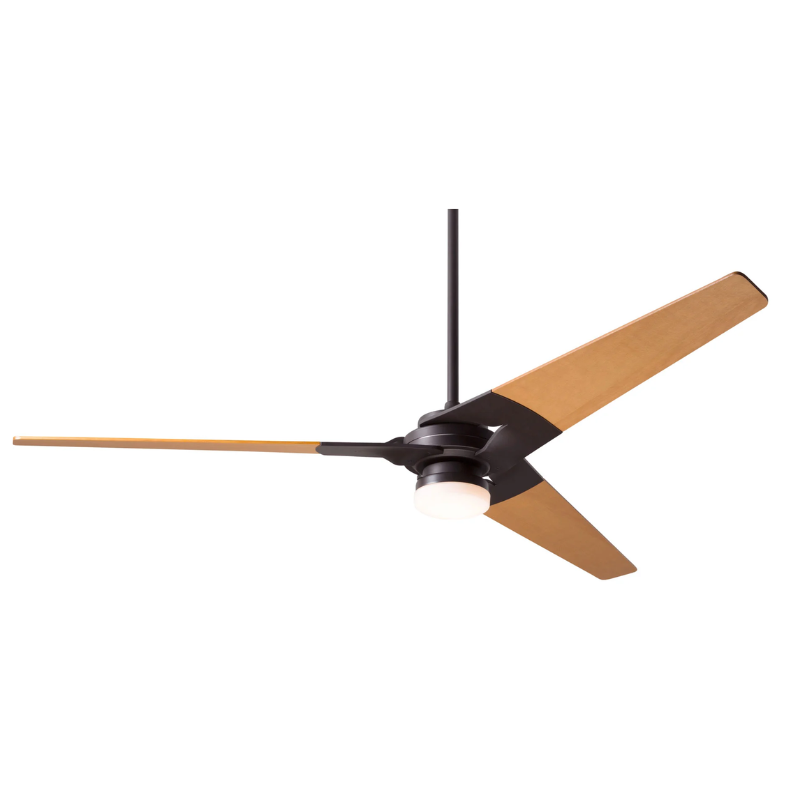

The Torsion 17W LED - 62" by Modern Fan Co. with the dark bronze body and maple blades.

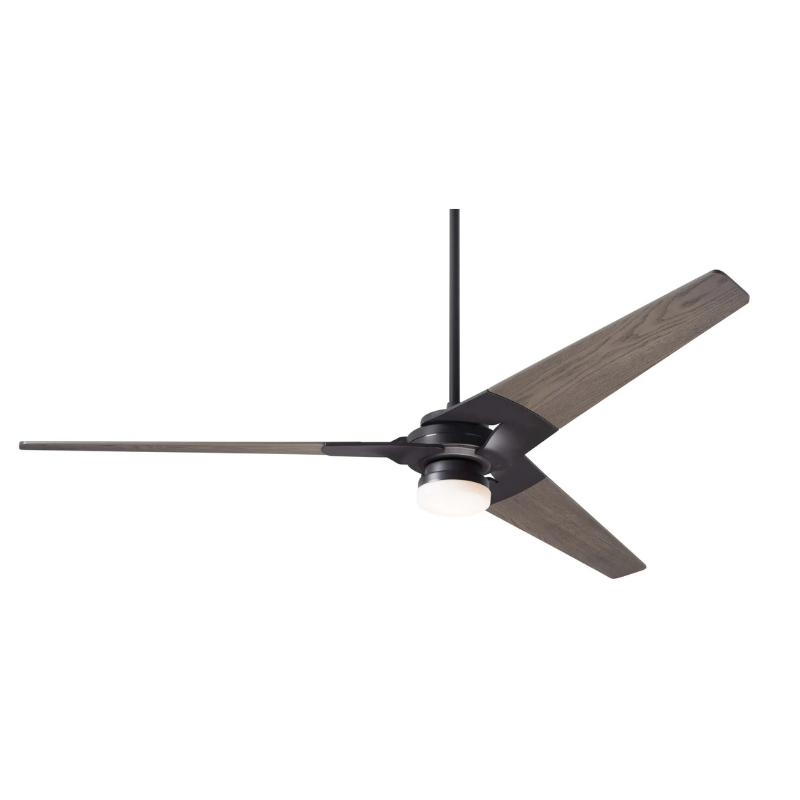

The Torsion 17W LED - 62" by Modern Fan Co. with the dark bronze body and graywash blades.

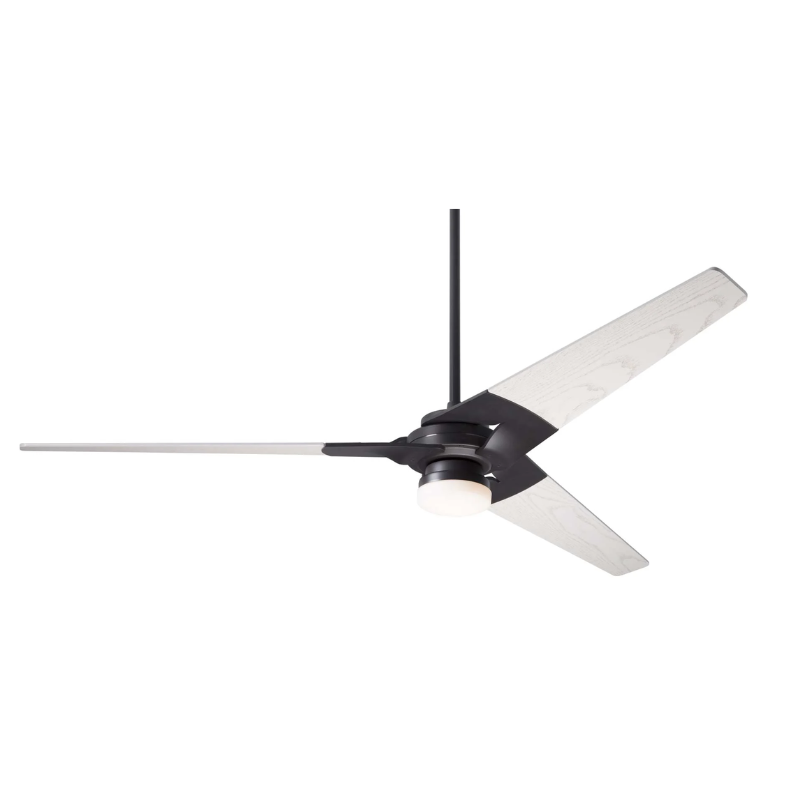

The Torsion 17W LED - 62" by Modern Fan Co. with the dark bronze body and whitewash blades.

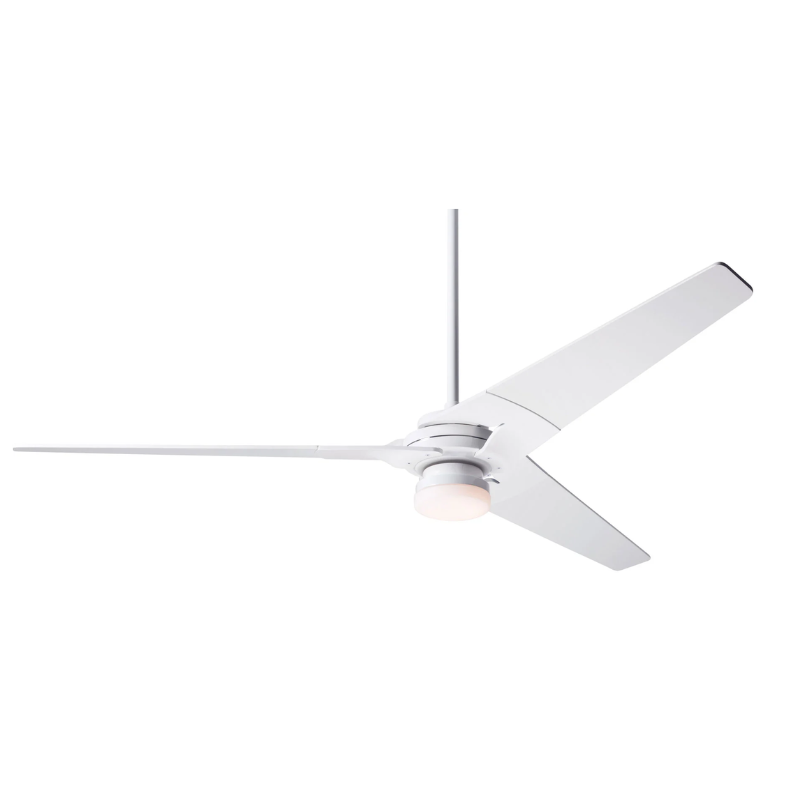

The Torsion 17W LED - 62" by Modern Fan Co. with the gloss white body and white blades.

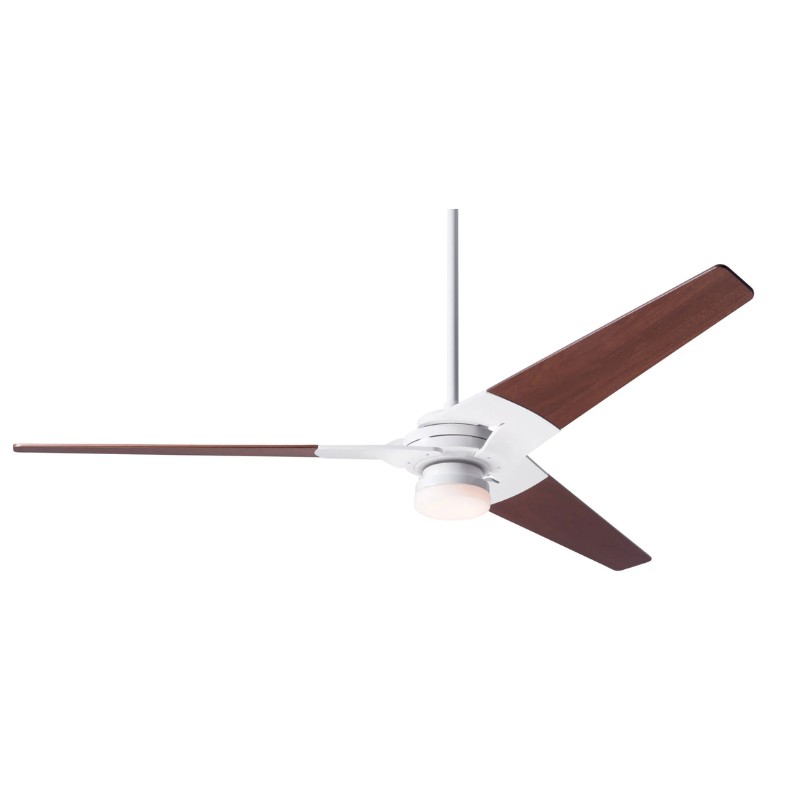

The Torsion 17W LED - 62" by Modern Fan Co. with the gloss white body and mahogany blades.
The Torsion 17W LED - 62" by Modern Fan Co. with the gloss white body and maple blades.

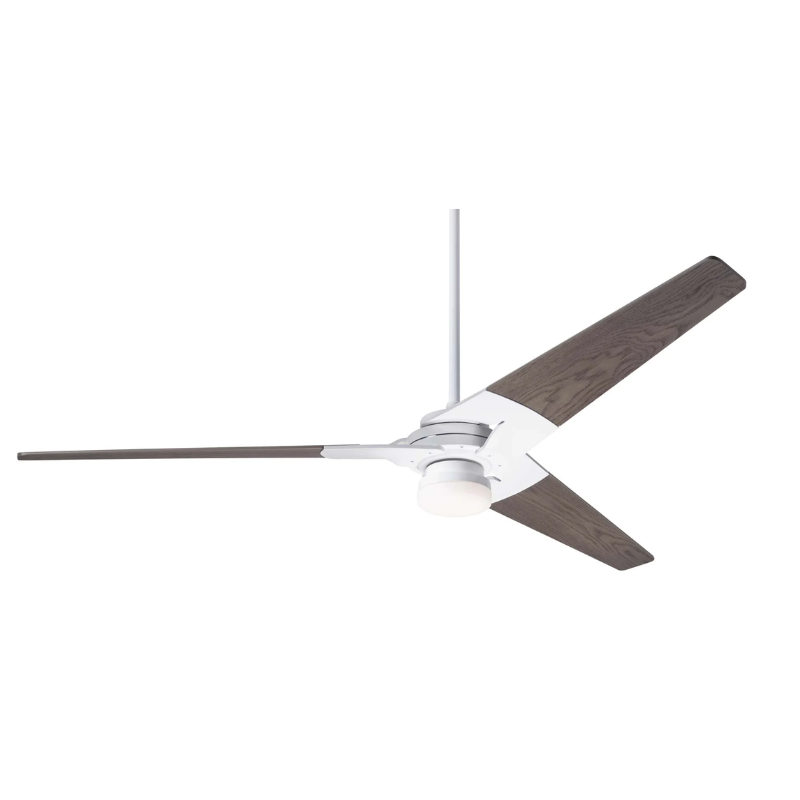

The Torsion 17W LED - 62" by Modern Fan Co. with the gloss white body and graywash blades.

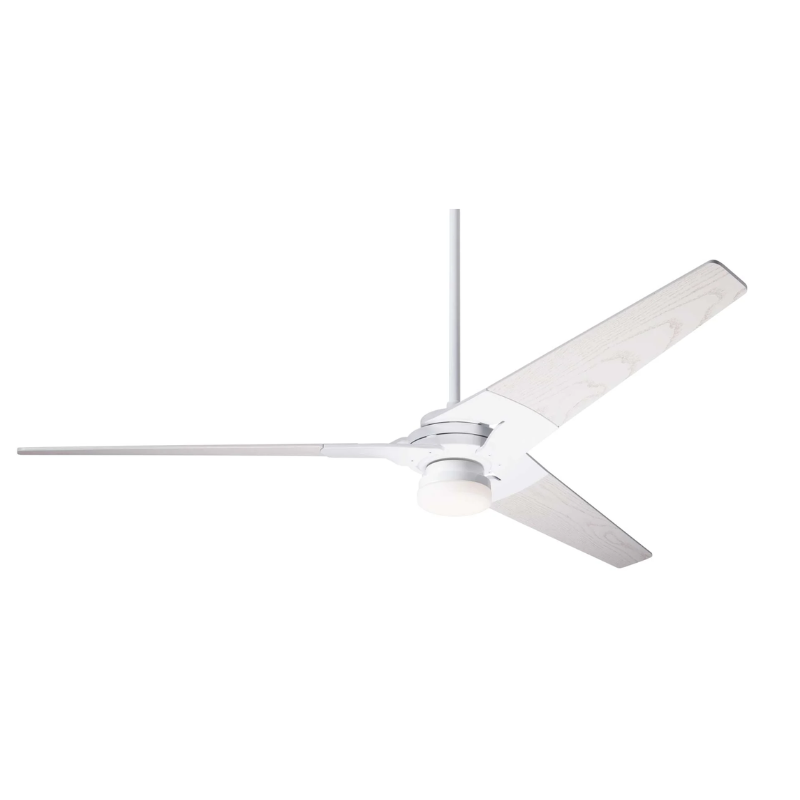

The Torsion 17W LED - 62" by Modern Fan Co. with the gloss white body and whitewash blades.

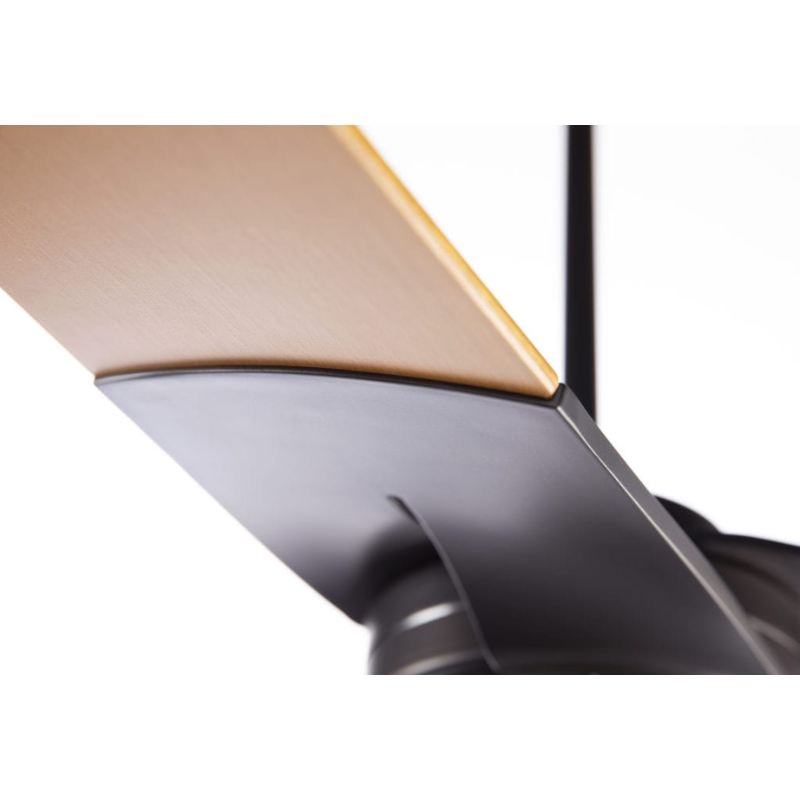

A close up on the plywood blades of the Torsion 17W LED - 62" by Modern Fan Co.

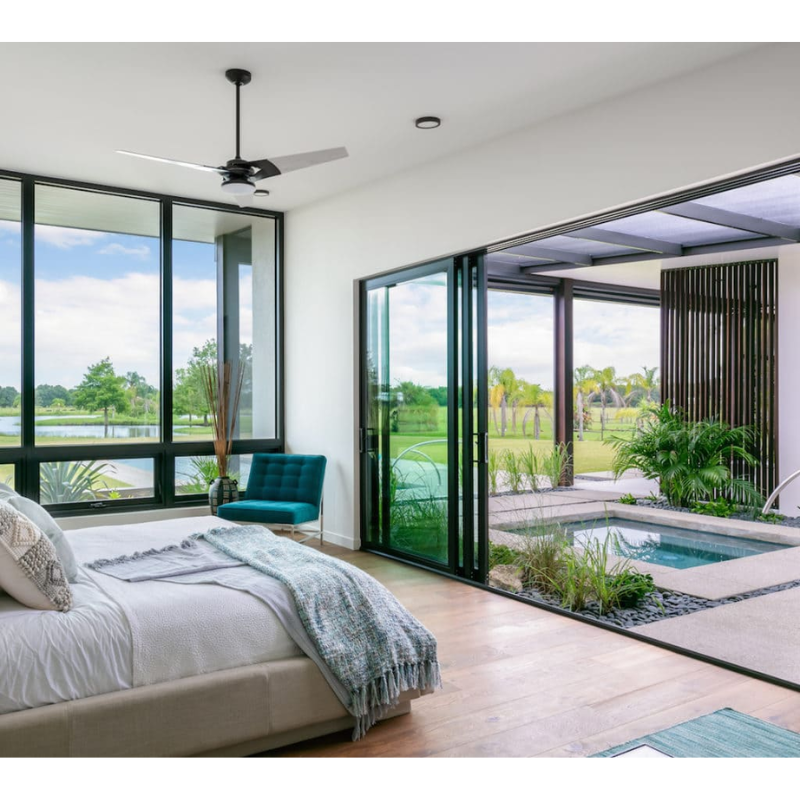

The Torsion 17W LED - 62" by Modern Fan Co. in a bedroom.

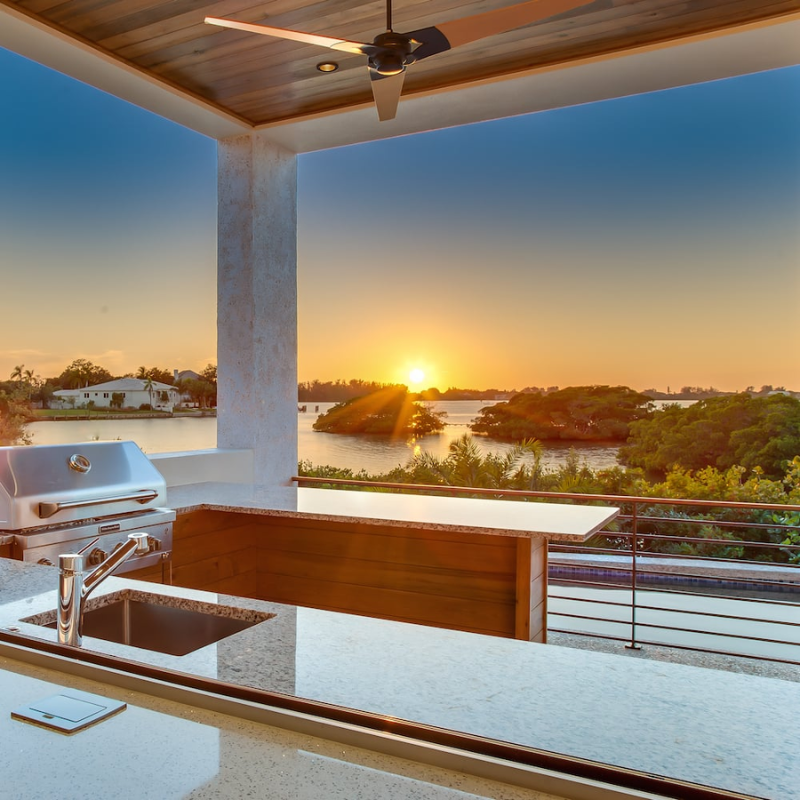

The Torsion 17W LED - 62" by Modern Fan Co. in an outdoor kitchen area.

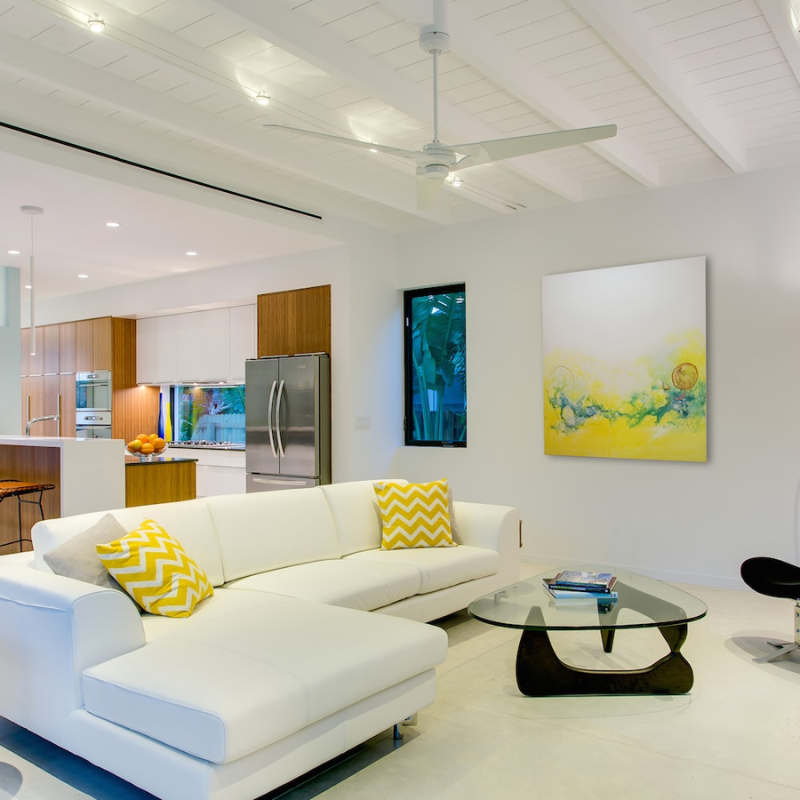

The Torsion 17W LED - 62" by Modern Fan Co. within a living room.

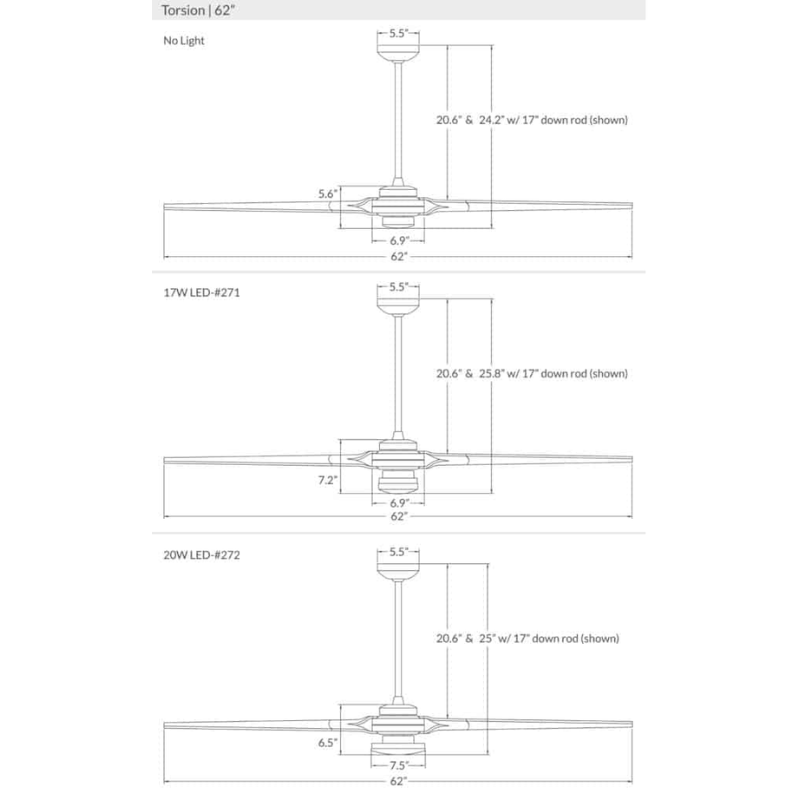

The dimensions for the Torsion 17W LED - 62" by Modern Fan Co.

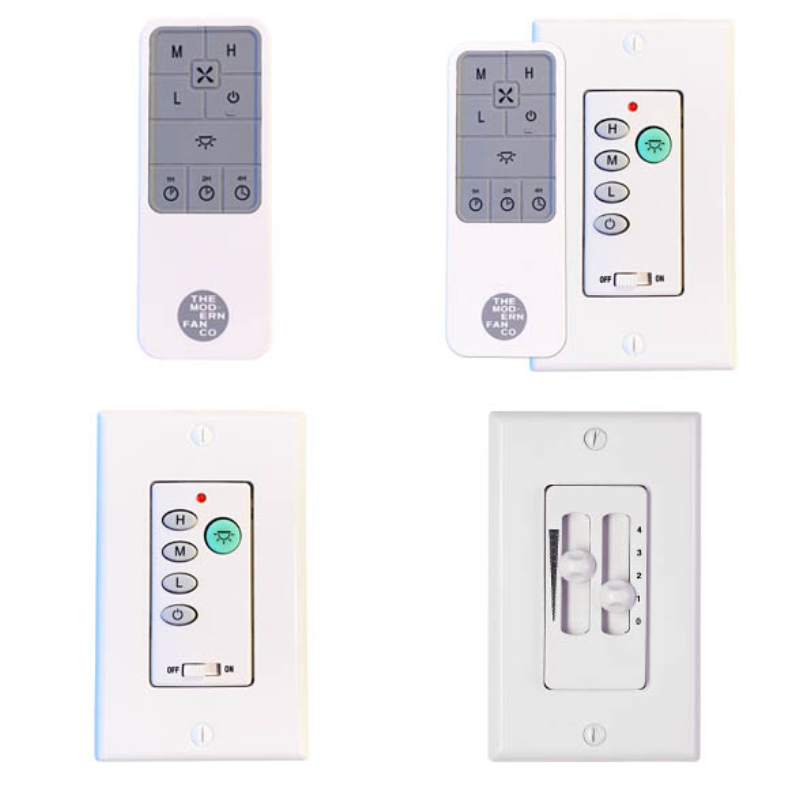

These are the four controller options for the Torsion 17W LED ceiling fan from the Modern Fan Co. In the top left you have the handheld remote, top left is the wall and remote combo, bottom left is the fan and light 2 wire, and bottom right is the fan and light 3 wire.

Torsion 17W LED - 62"

By Modern Fan Co.
$560.00
Color: Bright Nickel
Blade Color
Controller Option

The Torsion ceiling fan from The Modern Fan Co. with a 62" span and a 17W LED.

Details:

  • 172 mm x 20mm AC motor with reverse switch on fan body
  • 62” span, plywood blades (also available in 52″ span)
  • Includes 17” down rod; longer options are also available
  • Slope compatible up to 33°; adapter available for slopes up to 45°
  • Designed by Dave Ellis
  • ETL listed for dry and damp locations

High-Speed Performance Data:

Based on the DOE standardized test method (installed with a 4.5″ down rod).

  • RPM: 150
  • CFM (Cubic Feet per Minute): 6,263
  • Watts (fan only): 71.11
  • CFM/Watt: 87

Controller Options:

  • Fan & Light - 2 Wire: For operation of a fan with light. Uses only one circuit (two wires). Provides three speeds and a dimming or "on/off" light function. Includes wall control, a decora-style wall plate (white only), and an RF canopy receiver.
  • Fan & Light - 3 Wire: For operation of a fan with light. It requires three wires (two hot and a common neutral) for the separation of fan and light operation. It provides four fan speeds, dimming functions for light, and comes with a decora-style wall plate (white only).
  • Handheld Remote: For operation of a fan or a fan with light. Uses only one circuit (two wires). Provides three speeds, a dimming or "on/off" light function, and timer options for delayed shutdown. Includes a handset, battery, wall-mountable holder, and an RF canopy receiver.
  • Wall & Remote: A combination control package for the operation of a fan or a fan with light. Uses only one circuit (two wires). Provides three speeds and a dimming or "on/off" light function. Includes a remote handset, wall-mountable holder, battery, wall control, decora-style wall plate (white only), and an RF canopy receiver.

Materials: Die-cast aluminum and stamped steel with plywood blades

Dimensions (w/ 17" down rod):

  • 25.8 H x 62 Dia. inches
  • Base Dia. 5.5 inches
  • Weight: 15 lbs

Light Source:

  • 17W LED
  • 1530 Lumens
  • Color Temperature: 3000K
  • 90 CRI (Dimmable)
  • Light is behind an opal glass diffuser

Downloads:

Looking for this fan without an LED option? Check out the Torsion-62.
